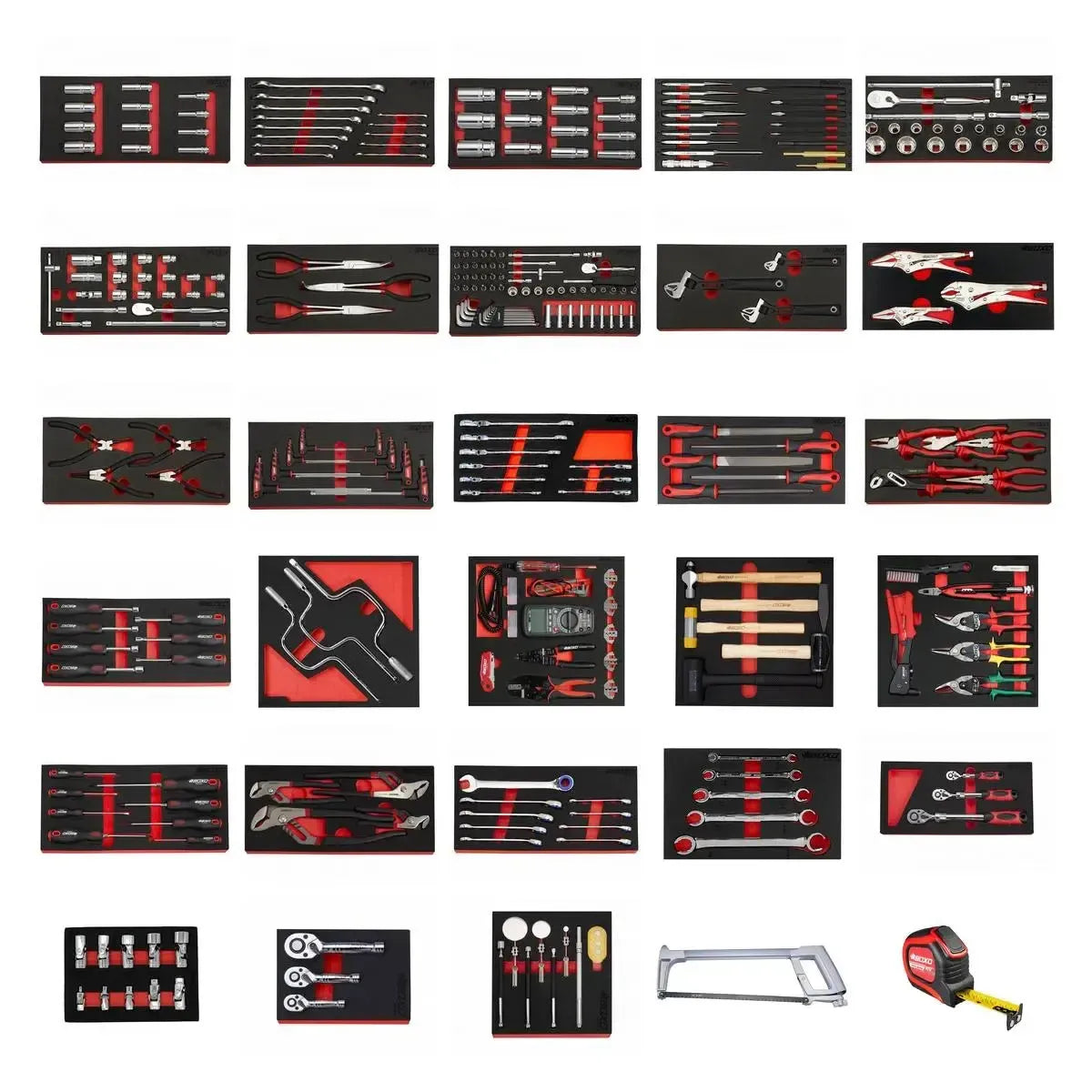

Aviation Master Tool Set | Elite, 310-Pieces

    DETAILS

    Aircraft maintenance demands full SAE coverage and strict tool accountability across every task. This 310-piece Elite Aviation Master Tool Set delivers that coverage in a single system: 1/4", 3/8", and 1/2" drive 12-point standard and deep sockets, combination, stubby ratcheting, flex head, 100-tooth ratcheting and flare nut wrenches, screwdrivers, nut drivers, pliers, hammers, punches and chisels, files, a hacksaw, plus dedicated aviation and electrical tool modules. Developed with input from aviation schools, manufacturers, and certified service centers, the configuration builds on the Starter and Advanced aviation sets and adds specialized wrenches, precision drivers, and aviation-specific instruments.

    Every component seats in CNC-cut 2-tone EVA foam inserts. The high-contrast base layer exposes an empty pocket instantly, supporting shift-end tool accountability and Foreign Object Debris control, while laser-etched markings identify each position for fast return-to-place.

    Aviation Master Tool Set | Elite, 310-Pieces
      Product form

      SKU: AVI-3

      $4,000.00

        %3Ch5%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/h5%3E
          SHIPPING METHOD: GROUND

        This product ships via UPS or USPS. UPS/USPS eligible orders over $750 qualify for Free Shipping.

        FREE pickup is also available at our Irvine, CA location. Learn More

          LIFETIME WARRANTY

        BoxoUSA offers a hassle-free lifetime warranty on all products. Learn More

        DETAILS

        Aircraft maintenance demands full SAE coverage and strict tool accountability across every task. This 310-piece Elite Aviation Master Tool Set delivers that coverage in a single system: 1/4", 3/8", and 1/2" drive 12-point standard and deep sockets, combination, stubby ratcheting, flex head, 100-tooth ratcheting and flare nut wrenches, screwdrivers, nut drivers, pliers, hammers, punches and chisels, files, a hacksaw, plus dedicated aviation and electrical tool modules. Developed with input from aviation schools, manufacturers, and certified service centers, the configuration builds on the Starter and Advanced aviation sets and adds specialized wrenches, precision drivers, and aviation-specific instruments.

        Every component seats in CNC-cut 2-tone EVA foam inserts. The high-contrast base layer exposes an empty pocket instantly, supporting shift-end tool accountability and Foreign Object Debris control, while laser-etched markings identify each position for fast return-to-place.

        KEY FEATURES

        • Full SAE 12-Point Socket Coverage: 1/4", 3/8", and 1/2" drive standard and deep sockets spanning 5/32" to 1-1/4", with 90-tooth ratchets, extensions, universal joints, and sliding T-bars for multi-angle engagement on recessed and obstructed fasteners.
        • Comprehensive Wrench Range: Combination, stubby reversible ratcheting, flex head ratcheting, 100-tooth ratcheting, and 12-point flare nut wrenches cover confined aircraft compartments, line fittings, and fast-cycle work without repositioning the tool.
        • Aviation and Electrical Modules: Pop rivet gun, left/right/straight cutting snips, reversible wire twister pliers, 32-piece feeler gauge, digital multimeter, circuit tester, and a multi-die crimping tool address rivet, safety-wire, sheet metal, and airframe wiring tasks.
        • Striking, Punch, and Layout Tools: Five-piece hammer set, 17-piece punch and chisel set, steel file set, high tension hacksaw, and telescoping LED pick-up and mirror tools support removal, fitment, and inspection work away from the bench.
        • CNC-Cut 2-Tone EVA Foam with Tool Accountability: Precision-cut pockets hold each tool in a fixed position, the contrasting second layer makes a missing tool visible at a glance, and laser-etched markings speed identification — critical for FOD prevention in controlled environments.
        • Drawer-System Integration and Chemical Resistance: Inserts are dimensioned to the 26" BoxoUSA drawer system for a flush, shift-proof fit and resist shop chemicals, fluids, and abrasion for long service life.

        WHAT’S INCLUDED

        • 65-Piece 1/4" Drive SAE 12-Point Socket Set: 90-tooth ratchet; 5/32" to 9/16" standard sockets; 3/16" to 1/2" deep sockets; extensions, spinner handle, sliding T-handle, universal joint; 13-piece ball hex key set; 24-piece hex, slotted, Phillips, Pozi and Torx bit socket set
        • 21-Piece 3/8" Drive SAE 12-Point Socket Set: 90-tooth ratchet; 1/4" to 15/16" standard sockets; 3" (75mm), 5" (125mm) & 10" (250mm) extensions; 5/8" (16mm) & 13/16" (21mm) spark plug sockets; sliding T-bar & universal joint
        • 21-Piece 1/2" Drive SAE 12-Point Socket Set: 90-tooth ratchet; 5/16" to 1-1/4" standard sockets; 5" (125mm) & 10" (250mm) extensions; sliding T-bar & universal joint
        • 12-Piece 3/8" Drive SAE Deep 12-Point Socket Set: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16"
        • 14-Piece 1/2" Drive SAE Deep 12-Point Socket Set: 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16", 1-3/16", 1-1/4"
        • 10-Piece 1/4" & 3/8" Drive 6-Point SAE Universal Socket Set: 1/4" drive 3/16", 1/4", 5/16"; 3/8" drive 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
        • 3-Piece 72T 1/4", 3/8" & 1/2" Drive Extendable Handle Ratchet Set

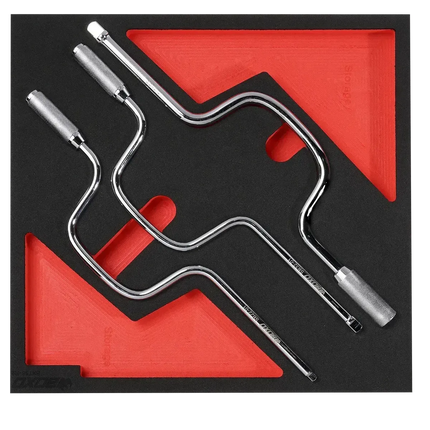

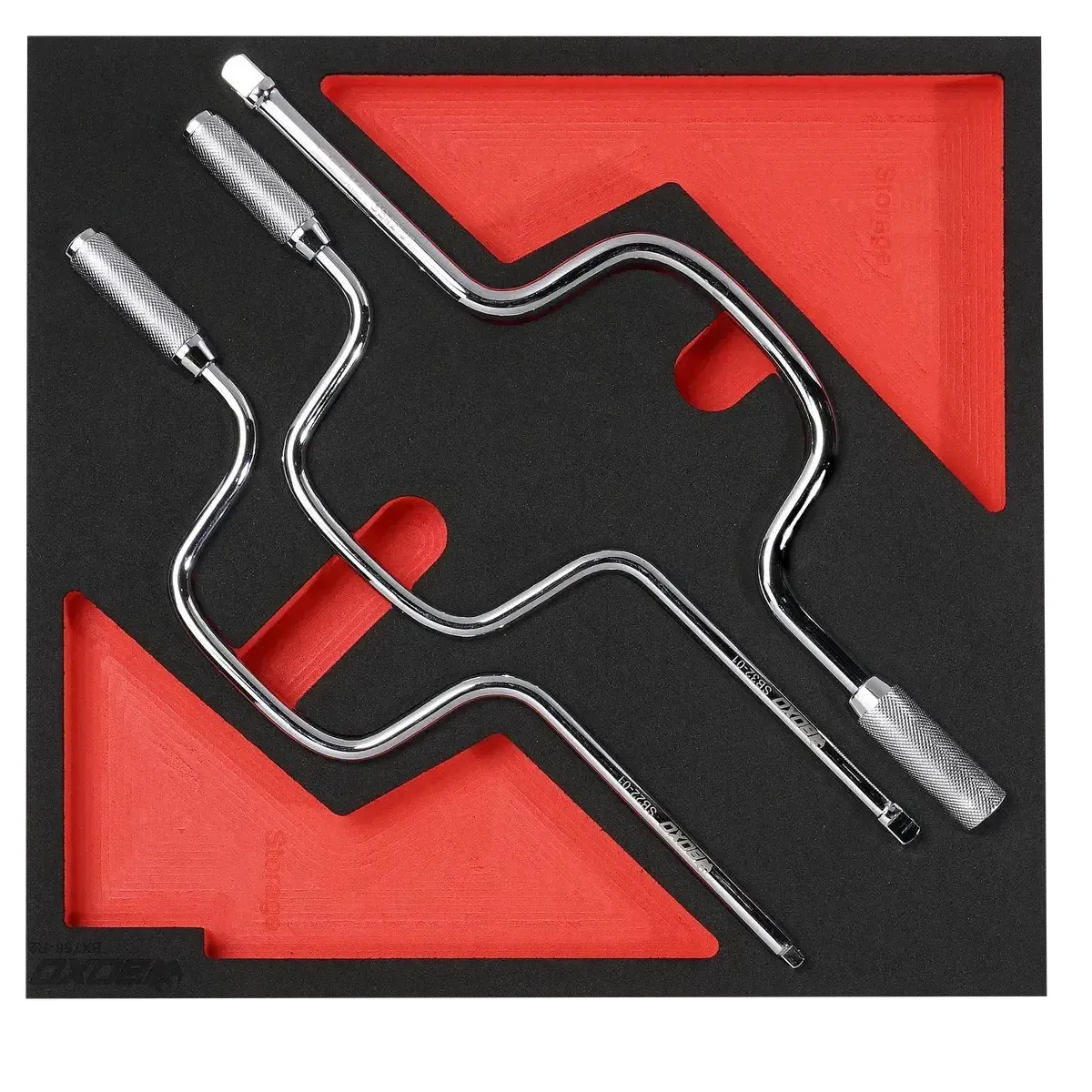

        • 3-Piece Speed Wrench Set: 1/4", 3/8" & 1/2" drive
        • 13-Piece SAE Combination Wrench Set: 1/4", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16"
        • 7-Piece Stubby SAE Reversible Ratcheting Combination Wrench Set: 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
        • 8-Piece SAE Flex Head Ratcheting Wrench Set: 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4" open end & ratcheting box end
        • 9-Piece 100T SAE Ratcheting Combination Wrench Set with magnetic stop retainer ring: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
        • 9-Piece Flex Head 100T SAE Ratcheting Combination Wrench Set (chrome): 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
        • 5-Piece SAE 12-Point Flare Nut Wrench Set: 1/4" x 5/16", 3/8" x 7/16", 1/2" x 9/16", 5/8" x 11/16", 3/4" x 13/16"
        • 3-Piece Adjustable Wrench Set: 6", 8", 10"
        • 7-Piece SAE Nut Driver Set with Hollow Shank: 3/16", 1/4", 5/16", 11/32", 3/8", 7/16", 1/2"
        • 8-Piece Slotted, Phillips & Pozi Drive Screwdriver Set: 3x75 & 4x100 slotted; PH0x75 & PH2x100 Phillips; PZ0x75, PZ1x100, PZ2x100 & PZ3x150 Pozi
        • 19-Piece Screwdriver, Plier, and Utility Tool Set: 12-1/2" claw hammer; 26-foot tape measure; 12" steel ruler with conversion table; dual-blade heavy-duty utility knife; 8-1/4" cut and strip wire pliers; 7" diagonal side cutter; 10" slip joint water pump plier; 7" combination plier; 8" long needle nose plier; 8" bent needle nose plier; 10" chrome paw adjustable wrench; slotted screwdrivers 4 x 100mm, 6 x 100mm, 8 x 150mm, 6 x 38mm; Phillips screwdrivers PH1 x 100mm, PH2 x 100mm, PH3 x 150mm, PH2 x 38mm
        • 6-Piece Pliers & Adjustable Wrench Set: HD diagonal side cutter, long needle nose, bent needle nose, straight/pipe/cutter jaw combination and slip joint water pump pliers with TPR handles; 10" adjustable wrench
        • 4-Piece Groove Joint Water Pump Pliers: 6", 8", 10", 12"
        • 3-Piece 11" Long Handled Needle Nose Plier Set: straight, 45° and 90°
        • 3-Piece Locking Plier Set: 6" long nose, 9" long nose, 10" long curved locking jaw
        • 5-Piece Hammer Set: 500g engineers hammer (hickory handle); 35mm interchangeable double soft face hammer (hickory handle); 55mm dead blow hammer; 2.5 lb. club hammer (hickory handle); 16 oz. ball peen hammer (hickory handle)
        • 17-Piece Punch & Chisel Set: pin punches #2, #3, #6 x 6" (150mm) and #8 x 7.75" (200mm); taper punches #3 x 5.50" (140mm), #4 & #5 x 6" (150mm), #8 x 6.50" (165mm); cold chisels #10, #12, #16, #18 x 6" (150mm) and #23 x 7.75" (200mm); cape chisel #5 x 5.30" (135mm); 1/4" and 5/16" brass punches with knurled handles and chamfered heads; spring-loaded auto center punch
        • 5-Piece Steel File Set: flat, half-round, triangle and square files
        • 7-Piece Pickup & Mirror Tool Set with LED Light: telescoping magnetic pick-up tools and inspection mirrors
        • 12" High Tension Hacksaw
        • 25-Foot Tape Measure
        • 7-Piece Aviation Tool Set: pop rivet gun; 10" left cutting snips; 10" right cutting snips; 10" straight cutting snips; 9" reversible wire twister plier (left and right twists); 32-piece feeler gauge, 0.4mm to 1mm; steel brush
        • 14-Piece Electrical Tool Set: digital multimeter with 2-piece cables; circuit tester; dual-blade heavy-duty utility knife; heavy-duty cut & strip wire pliers; 2-piece utility knife replacement blades (straight and angled); 8-5/8" open barrel & D-Sub V3.5 crimping tool (AWG 14/22/8-6 & mm 2.5/0.5/8-10); insulated terminal dies (AWG 22-18/16-14/12-10); non-insulated terminal dies (AWG 20-18/16-14/12-10/8); open barrel terminal dies (AWG 20-18/16-14/12-10); insulated cord-end terminal dies (AWG 22/20/18/16/14/12); insulated large cord-end terminal dies (AWG 10/8/6)

        SPECIFICATIONS

        • Piece count: 310 pieces
        • Storage layout: Multiple EVA foam drawer inserts
        • Tool type: Multi-category master tool set — sockets, ratchets, wrenches, screwdrivers, nut drivers, pliers, hammers, punches and chisels, files, aviation and electrical tools
        • Measurement type: SAE
        • Size range: 5/32" to 1-1/4" sockets; 1/4" to 15/16" wrenches
        • Drive type: 1/4", 3/8" and 1/2" drive
        • Configuration: 12-point standard and deep sockets, with 6-point universal sockets
        • Mechanism: 90-tooth and 100-tooth ratcheting; 72-tooth extendable handle ratchets
        • Handle type: TPR ergonomic grips; hickory handles on striking tools
        • Markings: Laser-etched foam markings
        • Foam type: CNC-cut 2-tone EVA foam
        • Chemical resistance: Resistant to shop chemicals and fluids
        • Storage features: Two-tone missing-tool visibility for FOD control
        • Intended use: Aircraft maintenance, airframe and powerplant service, sheet metal and electrical work
        • Warranty: Hassle-Free Lifetime Warranty

        boxo_eva_foam_sizing_options

        BoxoUSA EVA foam inserts are designed around standardized drawer platforms, starting with the 26” system, allowing you to build a fully modular and customizable tool layout. Each insert size works together, giving you the flexibility to organize tools based on your workflow, service type, or job requirements.

        Whether you’re running full 3/3 drawer coverage or combining sizes like 1/3, 1/6, and 2/9, the system adapts to your setup. This modular approach reduces time spent searching for tools, maintains consistent organization, and supports faster, more repeatable work.

        Standard 26” Drawer Size:
        22-3/8” x 15-11/16” x 1-1/4”

        EVA Foam Insert Sizes:
        • 3/3 (Full Drawer) – 22-3/8” x 15-11/16” x 1-1/4”
        • 2/3 – 14-13/16” x 15-11/16” x 1-1/4”
        • 1/2 – 22-3/8” x 7-7/8” x 1-1/4”
        • 1/3 – 7-3/8” x 15-11/16” x 1-1/4”
        • 2/9 – 7-3/8” x 10-1/2” x 1-1/4”
        • 1/6 – 7-3/8” x 7-13/16” x 1-1/4”
        • 1/9 – 7-3/8” x 5-1/4” x 1-1/4”

        • MODULAR TOOL ORGANIZATION

          Configure your drawer to match your workflow. Mix and match EVA foam inserts to create a layout that keeps tools organized, accessible, and ready for the job.

        • Boxo_Catalog_202268

          QUICK IDENTIFICATION & CUSTOM FIT

          CNC-cut foam with laser-etched markings ensures every tool has a precise fit and designated location. High-contrast layout makes it easy to spot missing tools at a glance.

        • Lifetime_Warranty2_1

          HASSLE-FREE LIFETIME WARRANTY

          Every BoxoUSA EVA foam tool set is backed by a hassle-free lifetime warranty, giving you confidence your tools are protected and built to last.
