Aviation Master Tool Set | Advanced, 244-Pieces

Name: Aviation Master Tool Set | Advanced, 244-Pieces
Brand: BoxoUSA
SKU: AVI-2
Price: 3000.0 USD
Availability: InStock

Aviation Master Tool Set | Advanced, 244-Pieces

Product form

SKU: AVI-2

$3,000.00

%3Ch5%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/h5%3E

SHIPPING METHOD: GROUND

This product ships via UPS or USPS. UPS/USPS eligible orders over $750 qualify for Free Shipping.

FREE pickup is also available at our Irvine, CA location. Learn More

LIFETIME WARRANTY

BoxoUSA offers a hassle-free lifetime warranty on all products. Learn More

KEY FEATURES

• Three-Drive SAE 12-Point Socket Coverage: 1/4", 3/8", and 1/2" drive standard and deep sockets from 5/32" to 1-1/4" provide continuous fastener coverage from small instrument and panel hardware through structural and landing gear fasteners without drive gaps.
• 90-Tooth and 100-Tooth Ratcheting Mechanisms: 4-degree ratchet arc on the drive ratchets and 100-tooth ratcheting combination wrenches allow fastener rotation in tightly obstructed bays where full swing is unavailable.
• Low-Profile and Articulating Wrench Options: Stubby reversible ratcheting, flex head ratcheting, and full-length combination wrenches from 1/4" to 15/16" reduce repositioning around wing spars, engine accessories, and firewall-mounted components.
• Aviation and Electrical Task Tooling: A 7-piece aviation set with pop rivet gun, snips, wire twister pliers, and feeler gauge pairs with a 14-piece electrical set including multimeter and crimper for sheet metal repair, safety wiring, and harness diagnostics.
• Retrieval and Inspection Support: Magnetic pick-up tools, telescoping mirrors, and an LED light address dropped hardware recovery and blind-area inspection, both central to FOD prevention protocols.
• CNC-Cut 2-Tone EVA Foam with Laser-Etched Markings: Each cavity is cut to the tool profile so contents stay seated during transport, with contrasting base layer and etched labels making a missing tool identifiable at a glance during tool control audits.

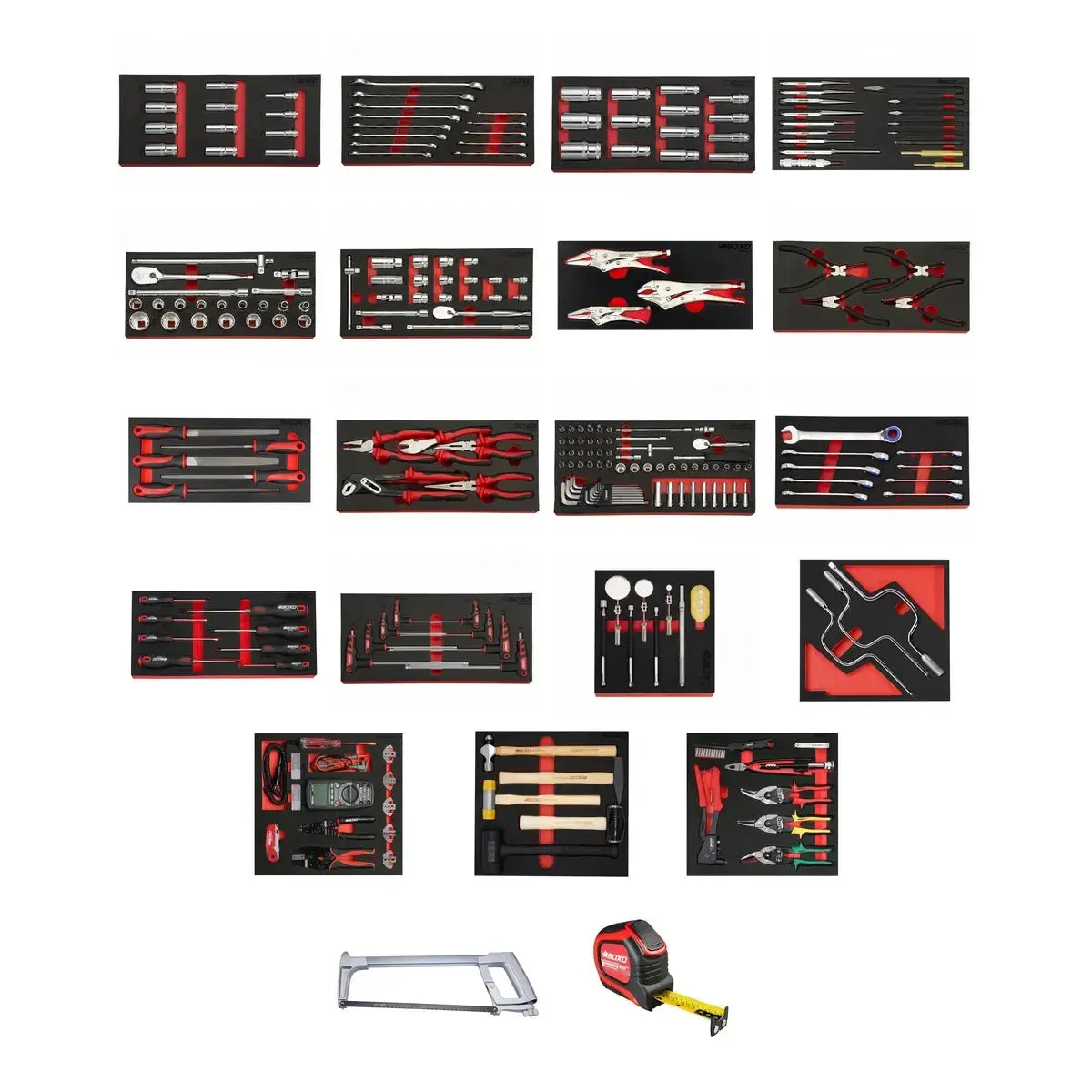

WHAT’S INCLUDED

• 65-Piece 1/4" Drive SAE 12-Point Socket Set: 90-tooth ratchet, 12-point standard sockets (5/32" to 9/16"), 12-point deep sockets (3/16" to 1/2"), extensions, spinner handle, sliding T-handle, universal joints, 13-piece ball hex key set, 24-piece hex, slotted, Phillips, Pozi, and Torx bit socket set
• 21-Piece 3/8" Drive SAE 12-Point Socket Set: 90-tooth ratchet, 12-point standard sockets (1/4" to 15/16"), 3", 5", and 10" extensions, 5/8" and 13/16" spark plug sockets, sliding T-bar, universal joint
• 21-Piece 1/2" Drive SAE 12-Point Socket Set: 90-tooth ratchet, 12-point standard sockets (5/16" to 1-1/4"), 5" and 10" extensions, sliding T-bar, universal joint
• 12-Piece 3/8" Drive SAE Deep 12-Point Socket Set: deep sockets (1/4" to 15/16")
• 14-Piece 1/2" Drive SAE Deep 12-Point Socket Set: deep sockets (3/8" to 1-1/4")
• 13-Piece SAE Combination Wrench Set: 1/4" to 15/16"
• 7-Piece Stubby SAE Reversible Ratcheting Combination Wrench Set: 3/8" to 3/4"
• 8-Piece SAE Flex Head Ratcheting Wrench Set: open-end and ratcheting box-end, 5/16" to 3/4"
• 9-Piece 100T SAE Ratcheting Combination Wrench Set with Magnetic Stop Retainer Ring and Grip Drive Open End: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
• 19-Piece Screwdriver, Plier, and Utility Tool Set: claw hammer, tape measure, steel ruler, utility knife, heavy-duty wire cutters, pliers, wrenches, slotted and Phillips screwdrivers
• 8-Piece Slotted, Phillips, and Pozi Drive Screwdriver Set
• 6-Piece Pliers and Adjustable Wrench Set: diagonal side cutters, long and bent needle nose pliers, slip joint pliers, 10" adjustable wrench
• 3-Piece Locking Jaw Plier Set: 6" long nose, 9" long nose, 10" long curved

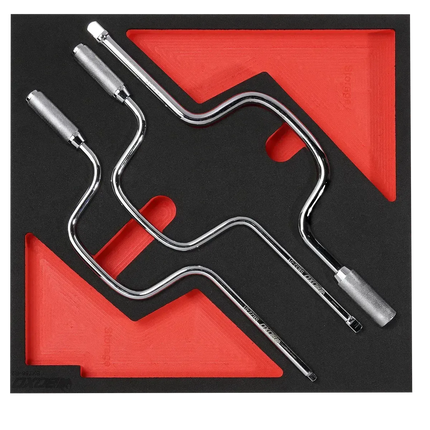

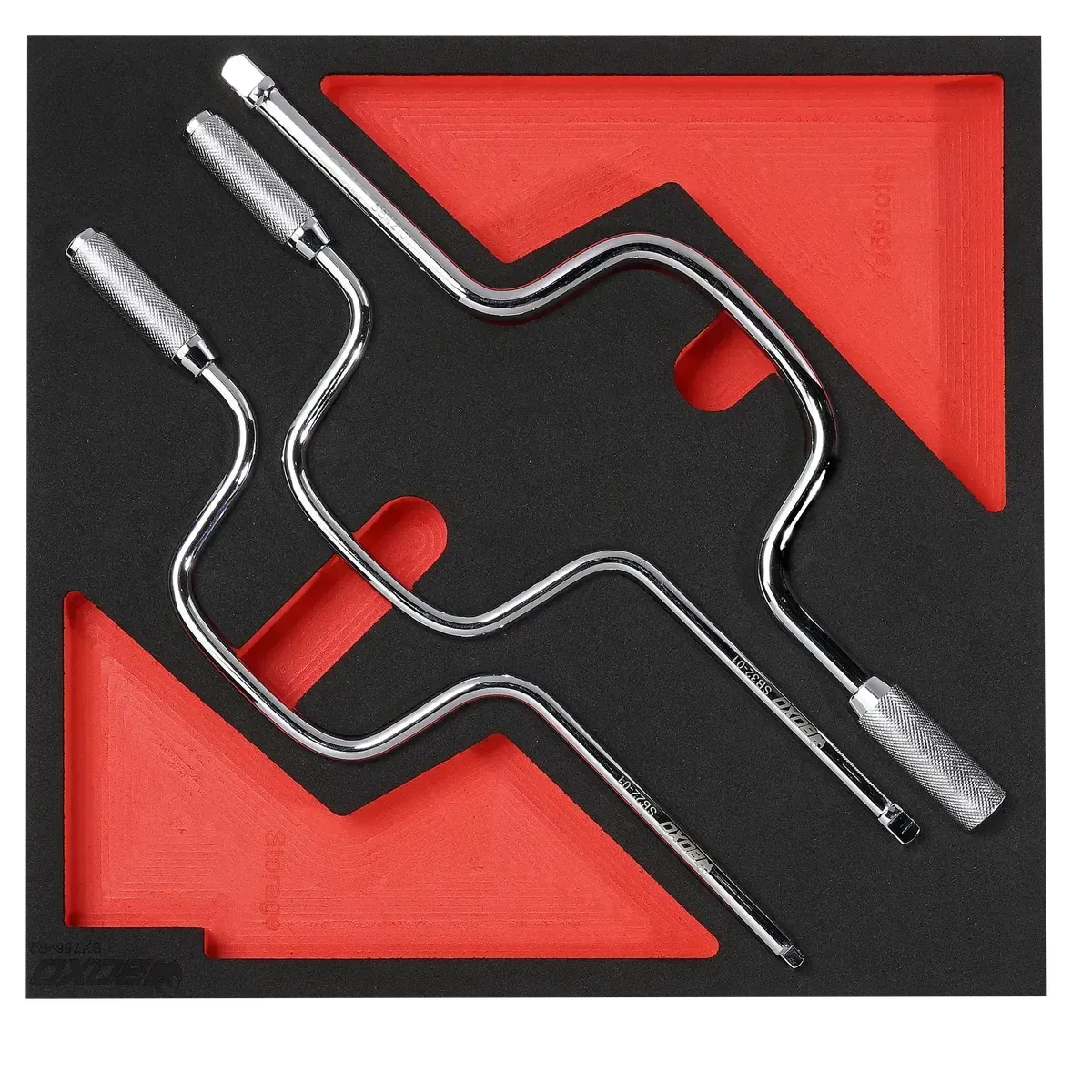

• 3-Piece Speed Wrench Set: 1/4", 3/8", and 1/2" drive
• 5-Piece Hammer Set: engineers hammer, soft-faced hammer, dead blow hammer, club hammer, ball peen hammer
• 17-Piece Punch and Chisel Set: pin punches, taper punches, brass punches, cold chisels, auto center punch
• 7-Piece Pickup and Mirror Tool Set with LED Light: magnetic pick-up tools, telescoping mirrors
• 5-Piece Steel File Set: flat, half-round, triangle, and square files
• 12" High Tension Hacksaw
• 25-Foot Tape Measure
• 14-Piece Electrical Tool Set: multimeter, crimper, utility knife
• 7-Piece Aviation Tool Set: pop rivet gun, snips, wire twister pliers, feeler gauge, steel brush

SPECIFICATIONS

• Piece count: 244 pieces
• Tool type: Multi-category master tool set — sockets, wrenches, screwdrivers, pliers, hammers, punches, files, electrical and aviation-specific tools
• Measurement type: SAE
• Size range: Sockets 5/32" to 1-1/4"; wrenches 1/4" to 15/16"
• Length range: Extensions 3", 5", and 10"
• Drive type: 1/4", 3/8", and 1/2" drive
• Configuration: 12-point standard and deep sockets
• Mechanism: 90-tooth drive ratchets; 100-tooth ratcheting combination wrenches
• Markings: Laser-etched foam labels
• Foam type: CNC-cut 2-tone EVA foam
• Chemical resistance: Resistant to shop chemicals and fluids
• Storage features: Tool accountability and Foreign Object Debris (FOD) prevention layout
• Intended use: Aircraft maintenance, repair, and overhaul; mechanical, structural, and electrical aviation applications
• Warranty: Hassle-Free Lifetime Warranty

BoxoUSA EVA foam inserts are designed around standardized drawer platforms, starting with the 26” system, allowing you to build a fully modular and customizable tool layout. Each insert size works together, giving you the flexibility to organize tools based on your workflow, service type, or job requirements.

Whether you’re running full 3/3 drawer coverage or combining sizes like 1/3, 1/6, and 2/9, the system adapts to your setup. This modular approach reduces time spent searching for tools, maintains consistent organization, and supports faster, more repeatable work.

Standard 26” Drawer Size:
22-3/8” x 15-11/16” x 1-1/4”

EVA Foam Insert Sizes:
• 3/3 (Full Drawer) – 22-3/8” x 15-11/16” x 1-1/4”
• 2/3 – 14-13/16” x 15-11/16” x 1-1/4”
• 1/2 – 22-3/8” x 7-7/8” x 1-1/4”
• 1/3 – 7-3/8” x 15-11/16” x 1-1/4”
• 2/9 – 7-3/8” x 10-1/2” x 1-1/4”
• 1/6 – 7-3/8” x 7-13/16” x 1-1/4”
• 1/9 – 7-3/8” x 5-1/4” x 1-1/4”

MODULAR TOOL ORGANIZATION
Configure your drawer to match your workflow. Mix and match EVA foam inserts to create a layout that keeps tools organized, accessible, and ready for the job.
QUICK IDENTIFICATION & CUSTOM FIT
CNC-cut foam with laser-etched markings ensures every tool has a precise fit and designated location. High-contrast layout makes it easy to spot missing tools at a glance.
HASSLE-FREE LIFETIME WARRANTY
Every BoxoUSA EVA foam tool set is backed by a hassle-free lifetime warranty, giving you confidence your tools are protected and built to last.
