68-Piece 1/2" Drive 6-Point Metric & SAE Master Chrome Socket Set | 3/3rd EVA Foam

Product form

SKU: BX510-R2

$465.00

%3Ch5%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/h5%3E

SHIPPING METHOD: GROUND

This product ships via UPS or USPS. UPS/USPS eligible orders over $750 qualify for Free Shipping.

FREE pickup is also available at our Irvine, CA location. Learn More

LIFETIME WARRANTY

BoxoUSA offers a hassle-free lifetime warranty on all products. Learn More

KEY FEATURES

* 6-point 1/2” drive sockets provide strong fastener engagement for automotive, shop, and mechanical service applications.
* Standard and deep metric and SAE socket ranges support broad coverage across common fastener sizes.
* Chamfered socket openings help guide fasteners and drive tools into position for faster, smoother setup.
* Diamond knurling on sockets and extensions improves fingertip grip and control during hand-starting or oily conditions.
* 90-tooth sealed ratchet delivers controlled operation in tight working areas with reduced swing arc.

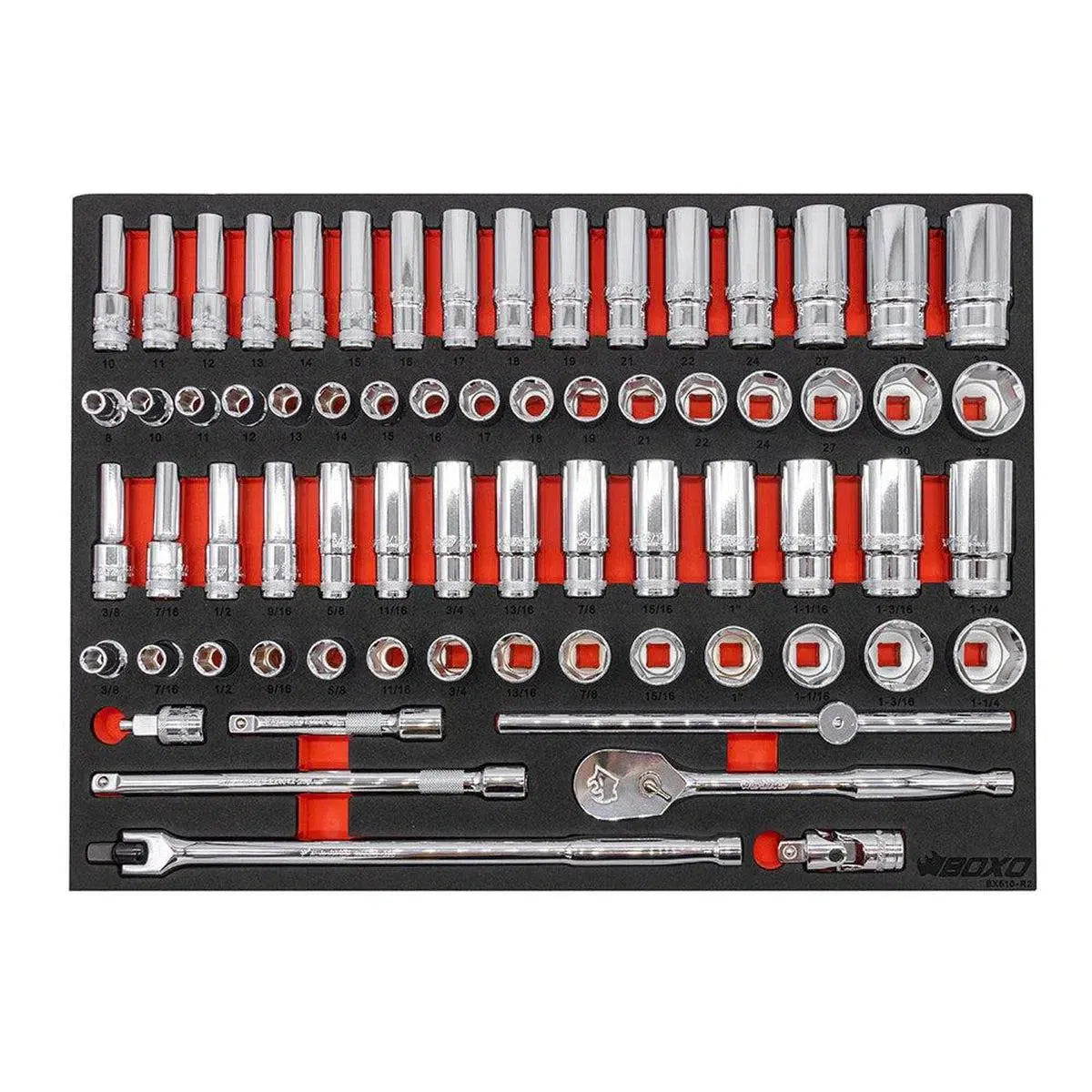

* CNC-cut 3/3 drawer EVA foam insert provides a precision fit, two-tone missing tool visibility, chemical resistance, and organized fitment in BoxoUSA drawer systems.

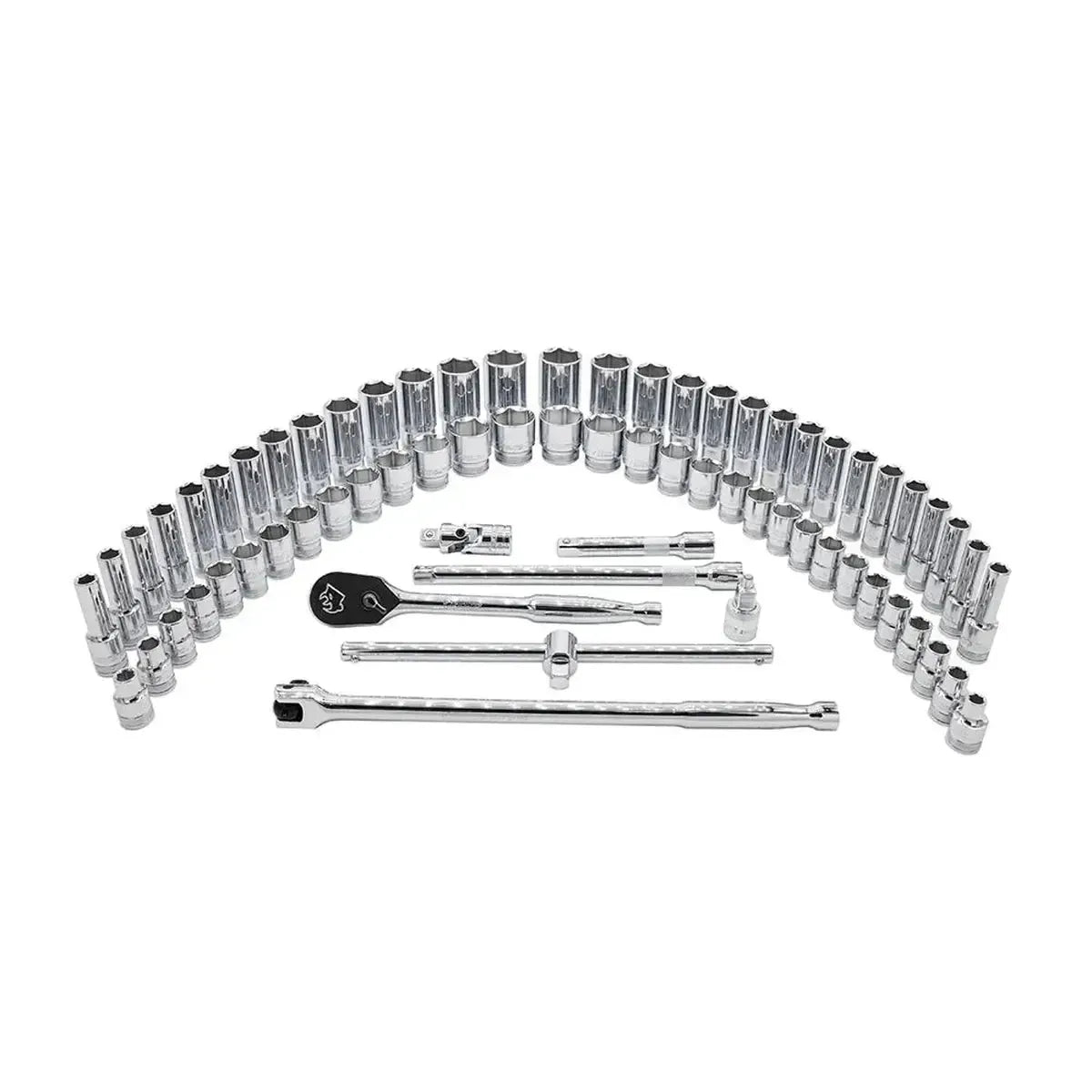

WHAT’S INCLUDED

* 17-Piece 1/2” drive 6-point metric standard sockets: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24, 27, 30, 32mm
* 16-Piece 1/2” drive 6-point metric deep sockets: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24, 27, 30, 32mm
* 14-Piece 1/2” drive 6-point SAE standard sockets: 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 13/16”, 7/8”, 15/16”, 1”, 1-1/16”, 1-3/16”, 1-1/4”
* 14-Piece 1/2” drive 6-point SAE deep sockets: 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 13/16”, 7/8”, 15/16”, 1”, 1-1/16”, 1-3/16”, 1-1/4”
* 90-Tooth 1/2” drive sealed ratchet wrench
* 1/2” Drive universal joint
* 1/2” Drive sliding T-handle: 12” (300mm)
* 2-Piece 1/2” Drive extensions: 5” (125mm), 10” (250mm)
* 1/2” Drive magnetic tip extension: 2” (50mm)
* 1/2” Drive swivel handle: 15” (380mm)

SPECIFICATIONS

• Piece count: 68
• Storage layout: Single 3/3 drawer EVA foam insert
• Drawer compatibility: (1) 3/3 drawer insert – 26” BoxoUSA system
• Foam dimensions: 22-3/8” x 15-11/16” x 1-1/4”
• Tool type: 1/2” drive 6-point socket and accessory set
• Measurement type: Metric and SAE
• Size range: Metric 8–32mm; SAE 3/8”–1-1/4”
• Drive type: 1/2” drive
• Configuration: Standard and deep sockets with ratchet, extensions, universal joint, sliding T-handle, magnetic tip extension, and swivel handle
• Material: Chrome vanadium alloy steel
• Finish: Mirror chrome
• Mechanism: 90-tooth sealed ratchet
• Markings: Easy-to-read size markings
• Foam type: CNC-cut 2-tone EVA foam
• Chemical resistance: Resistant to shop chemicals and fluids
• Storage features: Two-tone tool visibility and precision-cut tool locations
• Storage orientation: Drawer-based EVA foam insert
• Intended use: Professional automotive, shop, and mechanical fastening applications
• Weight: 28 lbs
• Warranty: Hassle-Free Lifetime Warranty

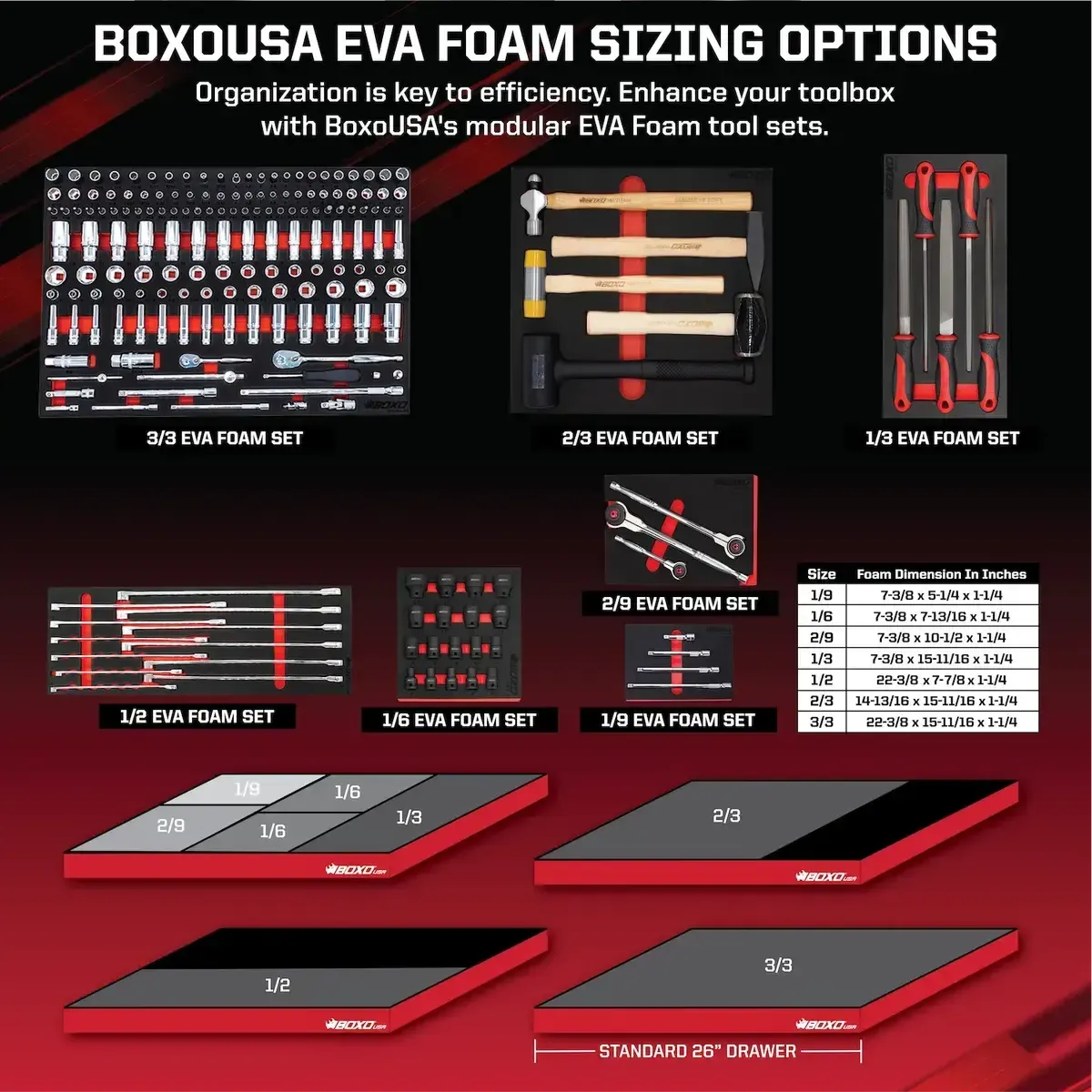

BoxoUSA EVA foam inserts are designed around standardized drawer platforms, starting with the 26” system, allowing you to build a fully modular and customizable tool layout. Each insert size works together, giving you the flexibility to organize tools based on your workflow, service type, or job requirements.

Whether you’re running full 3/3 drawer coverage or combining sizes like 1/3, 1/6, and 2/9, the system adapts to your setup. This modular approach reduces time spent searching for tools, maintains consistent organization, and supports faster, more repeatable work.

Standard 26” Drawer Size:
22-3/8” x 15-11/16” x 1-1/4”

EVA Foam Insert Sizes:
• 3/3 (Full Drawer) – 22-3/8” x 15-11/16” x 1-1/4”
• 2/3 – 14-13/16” x 15-11/16” x 1-1/4”
• 1/2 – 22-3/8” x 7-7/8” x 1-1/4”
• 1/3 – 7-3/8” x 15-11/16” x 1-1/4”
• 2/9 – 7-3/8” x 10-1/2” x 1-1/4”
• 1/6 – 7-3/8” x 7-13/16” x 1-1/4”
• 1/9 – 7-3/8” x 5-1/4” x 1-1/4”

MODULAR TOOL ORGANIZATION
Configure your drawer to match your workflow. Mix and match EVA foam inserts to create a layout that keeps tools organized, accessible, and ready for the job.
QUICK IDENTIFICATION & CUSTOM FIT
CNC-cut foam with laser-etched markings ensures every tool has a precise fit and designated location. High-contrast layout makes it easy to spot missing tools at a glance.
HASSLE-FREE LIFETIME WARRANTY
Every BoxoUSA EVA foam tool set is backed by a hassle-free lifetime warranty, giving you confidence your tools are protected and built to last.
