29-Piece 1/2" Drive Metric Socket Set | 1/3 Drawer EVA Foam

Product form

SKU: BX235A-R2

$180.00

%3Ch5%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/h5%3E

SHIPPING METHOD: GROUND

This product ships via UPS or USPS. UPS/USPS eligible orders over $750 qualify for Free Shipping.

FREE pickup is also available at our Irvine, CA location. Learn More

LIFETIME WARRANTY

BoxoUSA offers a hassle-free lifetime warranty on all products. Learn More

KEY FEATURES

• 8mm–32mm Metric Socket Coverage: Wide range of 12-point standard sockets handles common to larger metric fasteners with one organized set.

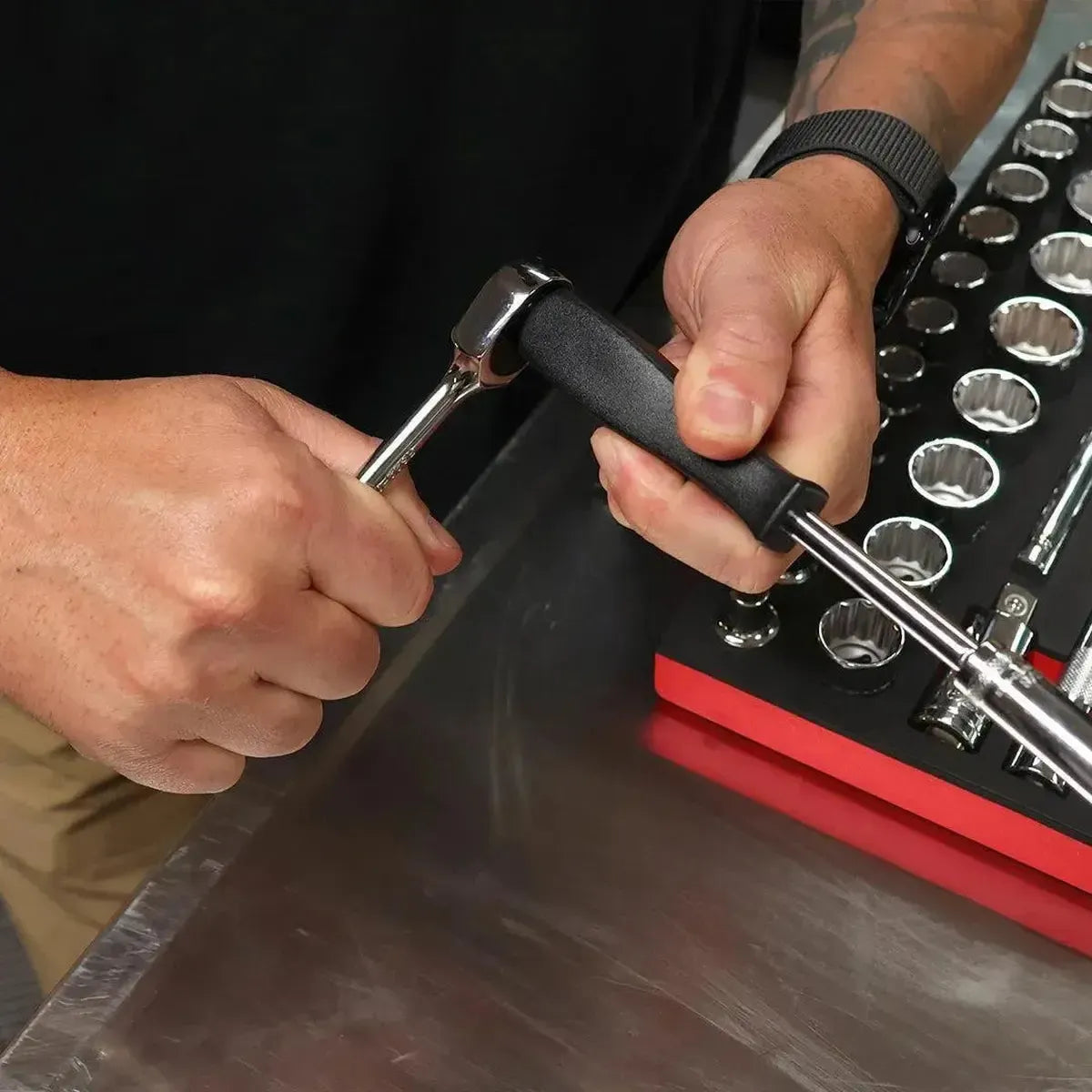

• 90-Tooth Ratchet: Provides a short swing arc for improved access and control when working in confined areas.
• Positive Grip Broaching & Chamfered Socket Ends: 12-point socket design provides secure fastener engagement for dependable torque transfer, with chamfered ends that guide sockets onto fasteners for faster, easier engagement.

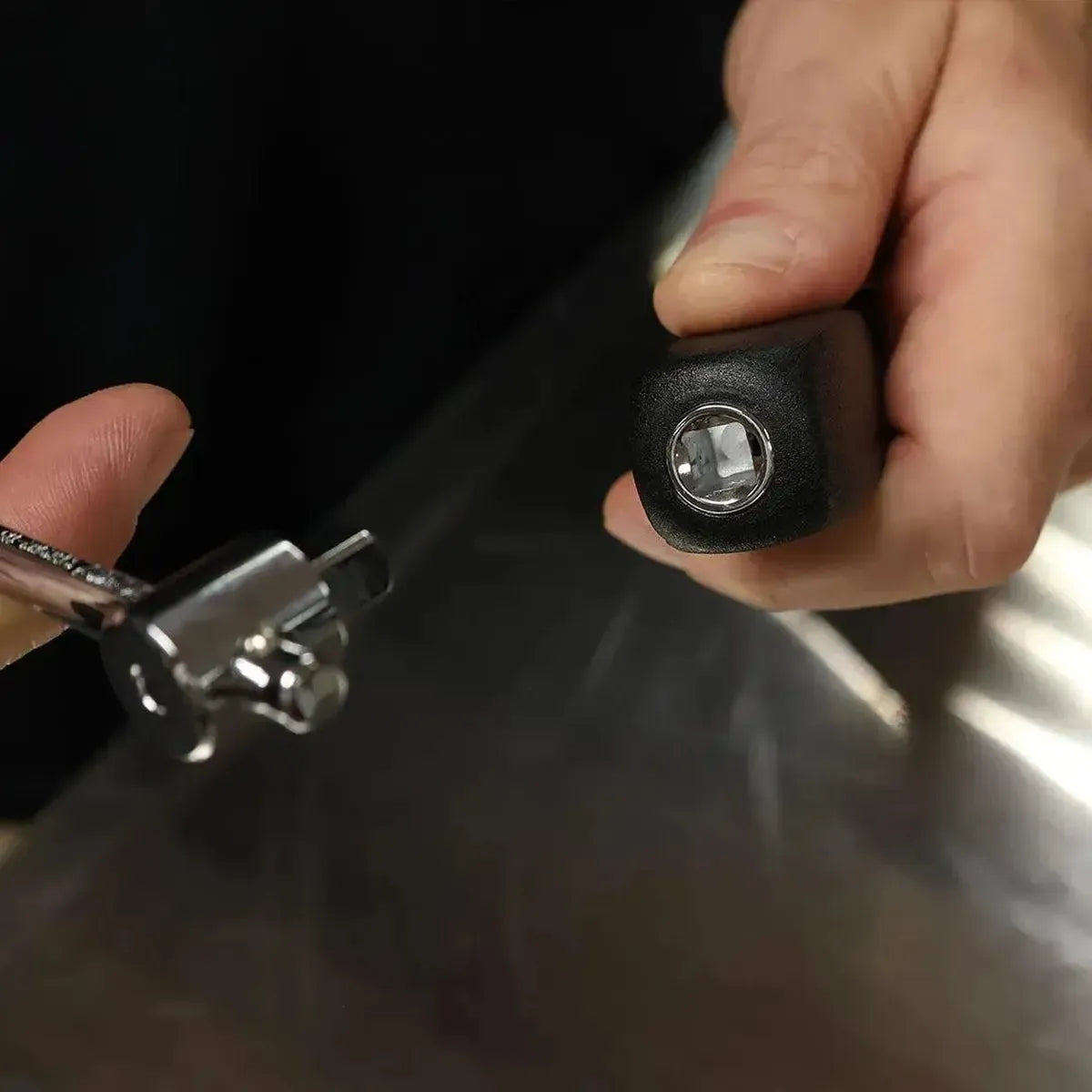

• Secure Drive Connection: Detents on all four walls of the female drive end engage the retention ball from multiple positions for a secure connection.
• Multiple Extensions & Accessories: Includes 5" and 10" extensions, a 2" magnetic-tip extension, sliding T-bar, universal joint, and adaptor to improve reach and access around obstructions.
• Mirror Chrome Finish: Helps protect against corrosion while providing an easy-to-clean surface for long-term use.
• 1/3 Drawer EVA Foam Organization: CNC-cut, two-tone EVA foam keeps every socket and accessory in a precision-fit location for faster tool selection and at-a-glance tool accountability, resistant to shop chemicals and fluids.

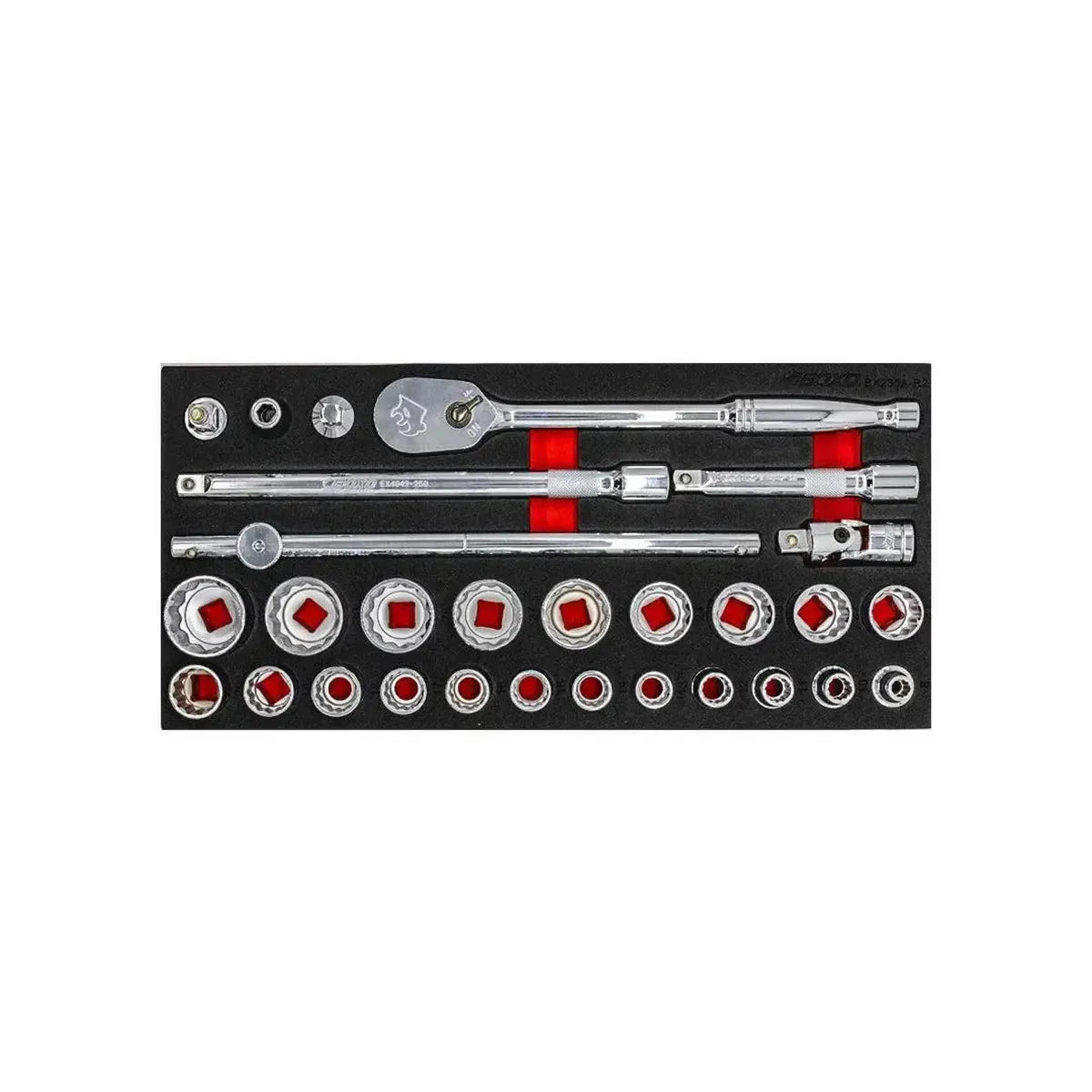

WHAT’S INCLUDED

• 1/2" Drive 90-Tooth Ratchet
• 12-Point Metric Standard Sockets: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 30, 32mm
• 1/2" Drive 5" (125mm) Extension
• 1/2" Drive 10" (250mm) Extension
• 2" (50mm) Magnetic-Tip Extension
• 5/16" Bit Holder / 1/2" Drive Socket
• 1/2" to 3/8" Drive Adaptor
• Sliding T-Bar
• Universal Joint

SPECIFICATIONS

• Piece count: 29-piece
• Storage layout: Single 1/3 drawer EVA foam insert
• Drawer compatibility: (1) 1/3 drawer insert – 26" BoxoUSA system
• Foam dimensions: 7-3/8" x 15-11/16" x 1-1/4"
• Tool type: Socket set with ratchet and drive accessories
• Measurement type: Metric
• Size range: 8mm–32mm
• Drive type: 1/2"
• Material: [not specified in source — need input]
• Finish: Mirror chrome
• Mechanism: 90-tooth ratchet
• Foam type: CNC-cut 2-tone EVA foam
• Chemical resistance: Resistant to shop chemicals and fluids
• Intended use: Automotive, aviation, mechanical, and general maintenance applications
• Weight: 8.92 lbs
• Warranty: Hassle-Free Lifetime Warranty

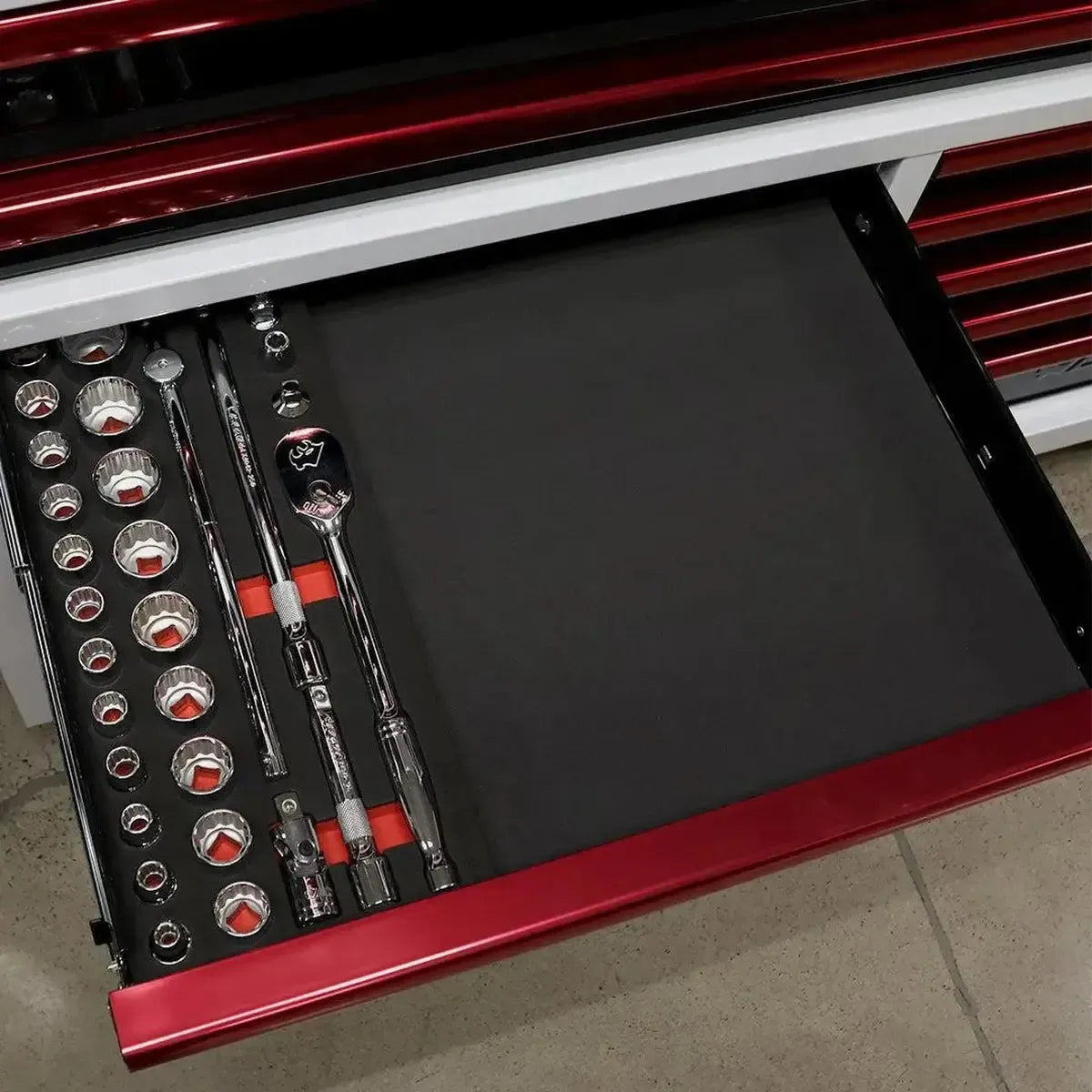

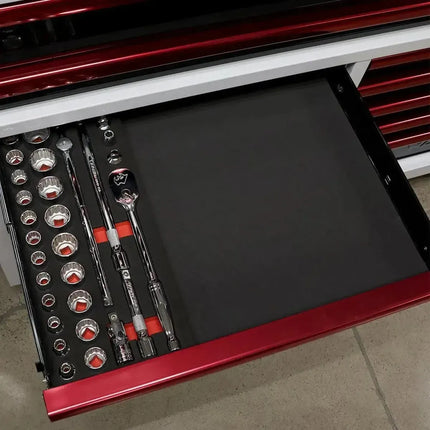

BoxoUSA EVA foam inserts are designed around standardized drawer platforms, starting with the 26” system, allowing you to build a fully modular and customizable tool layout. Each insert size works together, giving you the flexibility to organize tools based on your workflow, service type, or job requirements.

Whether you’re running full 3/3 drawer coverage or combining sizes like 1/3, 1/6, and 2/9, the system adapts to your setup. This modular approach reduces time spent searching for tools, maintains consistent organization, and supports faster, more repeatable work.

Standard 26” Drawer Size:
22-3/8” x 15-11/16” x 1-1/4”

EVA Foam Insert Sizes:
• 3/3 (Full Drawer) – 22-3/8” x 15-11/16” x 1-1/4”
• 2/3 – 14-13/16” x 15-11/16” x 1-1/4”
• 1/2 – 22-3/8” x 7-7/8” x 1-1/4”
• 1/3 – 7-3/8” x 15-11/16” x 1-1/4”
• 2/9 – 7-3/8” x 10-1/2” x 1-1/4”
• 1/6 – 7-3/8” x 7-13/16” x 1-1/4”
• 1/9 – 7-3/8” x 5-1/4” x 1-1/4”

MODULAR TOOL ORGANIZATION
Configure your drawer to match your workflow. Mix and match EVA foam inserts to create a layout that keeps tools organized, accessible, and ready for the job.
QUICK IDENTIFICATION & CUSTOM FIT
CNC-cut foam with laser-etched markings ensures every tool has a precise fit and designated location. High-contrast layout makes it easy to spot missing tools at a glance.
HASSLE-FREE LIFETIME WARRANTY
Every BoxoUSA EVA foam tool set is backed by a hassle-free lifetime warranty, giving you confidence your tools are protected and built to last.
