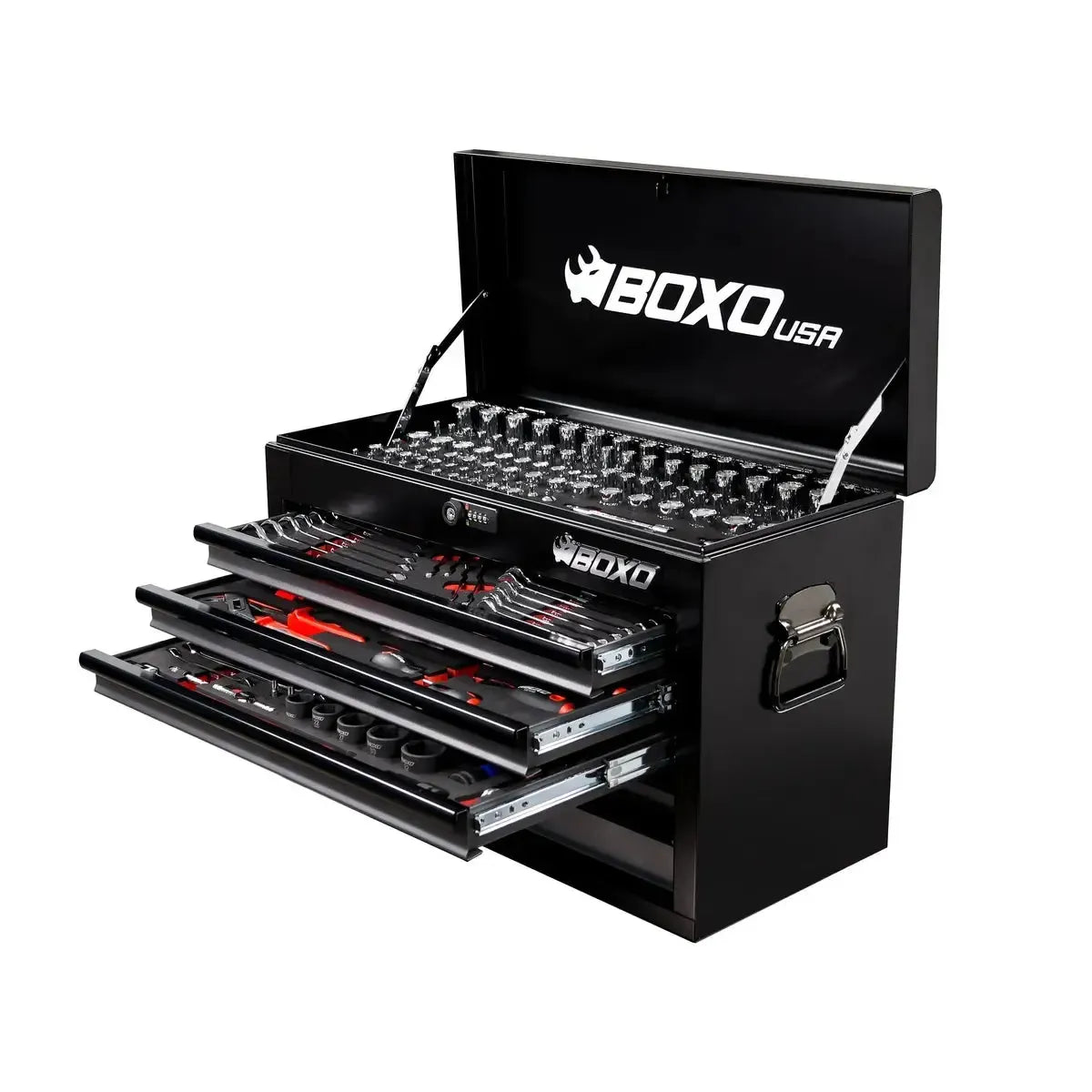

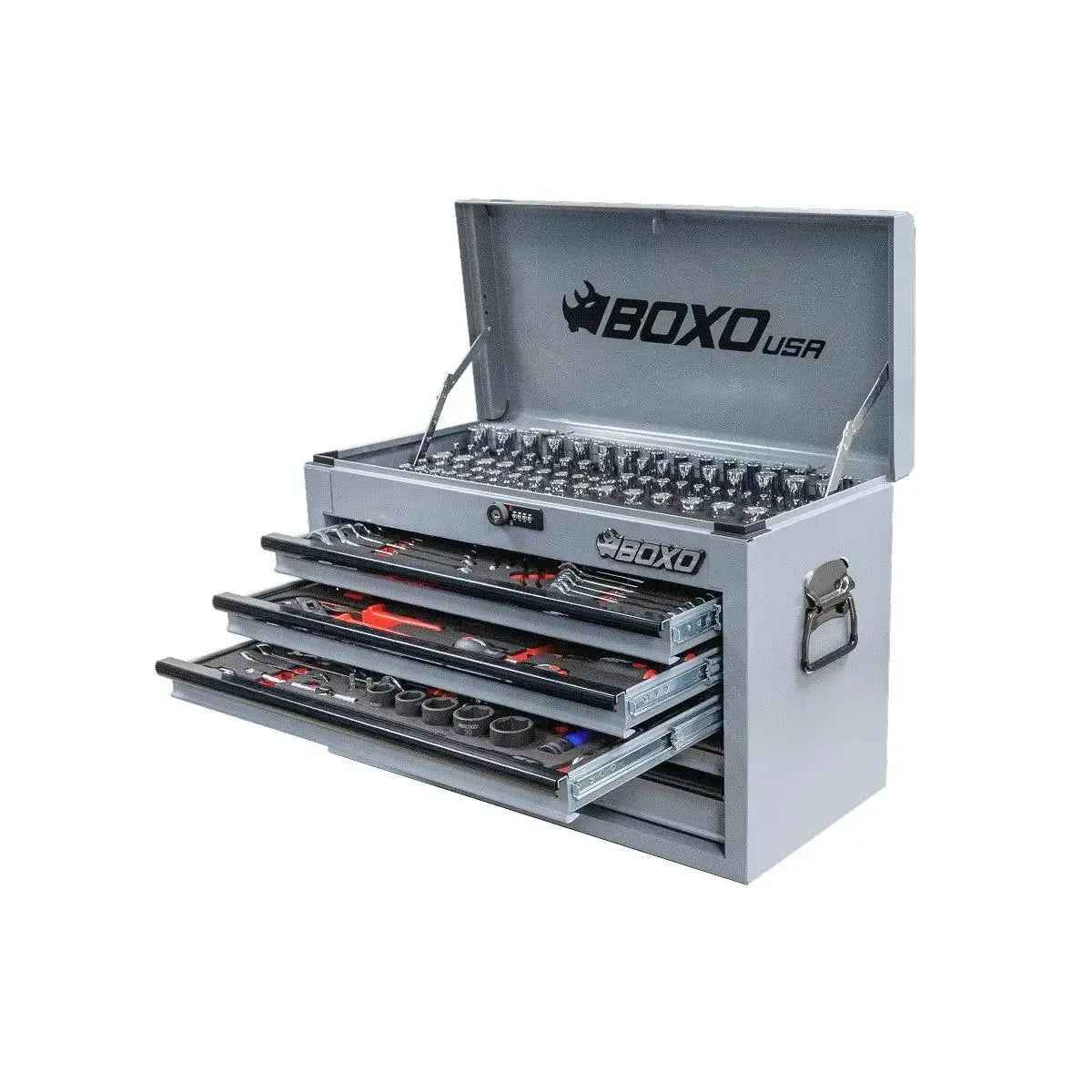

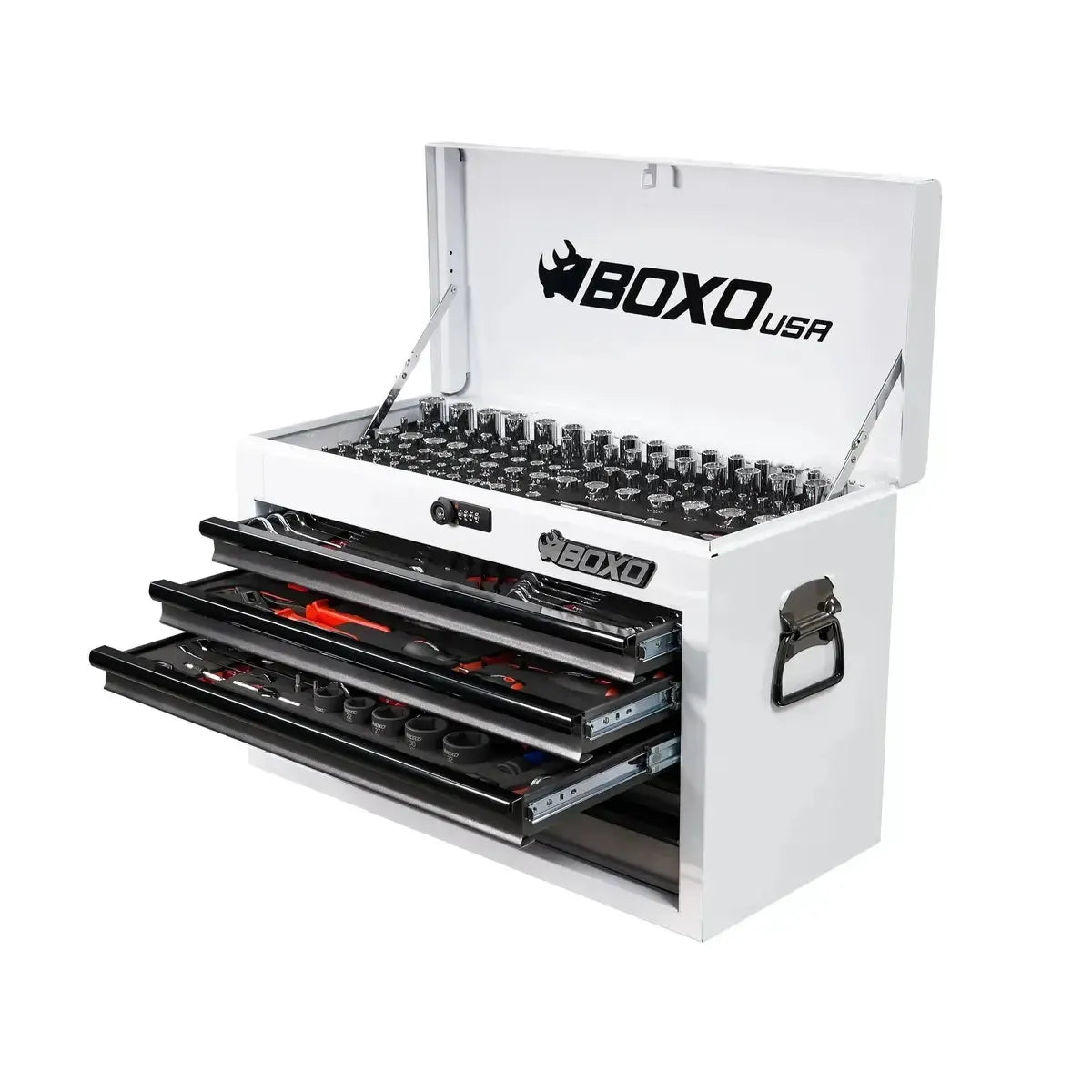

UTV Box | 190-Piece Metric and SAE UTV Tool Set with 5-Drawer Hand Carry Tool Box

    DETAILS

    Purpose-built for UTV owners, off-road racers, and field service technicians, the BoxoUSA 190-piece UTV Tool Box delivers a complete, mobile repair solution in one rugged system. This 5-drawer hand carry toolbox is fully equipped with a comprehensive mix of metric and SAE hand tools, plus specialized UTV service tools designed to handle real-world maintenance and trail-side repairs.

    Inside, you’ll find a full assortment of professional-grade sockets, ratchets, wrenches, hex keys, and screwdrivers essential for the most common fasteners across UTV platforms. Dedicated service tools expand capability with impact sockets for wheel and suspension work, Torx solutions for body panels and components, and specialty tools like a swivel breaker bar, pry bar, locking pliers, and circlip pliers to tackle deeper mechanical tasks.

    Built from heavy-duty steel with smooth ball-bearing drawers, this portable toolbox is designed for durability and efficiency wherever repairs are needed. Each drawer is organized with CNC-cut EVA foam for maximum tool control, and labeled for quick identification and accountability, so you always know what’s in your box before and after the job.

    Read more

    UTV Box | 190-Piece Metric and SAE UTV Tool Set with 5-Drawer Hand Carry Tool Box

      Product form

      SKU: UTVBX-BK-BK

      The ultimate heavy-duty service hub for your SxS. Engineered as a professional-grade mobile workstation, the UTV Box provides shop-level organization and high-torque capability for your garage, rig or chase truck.

      • Purpose-built for Side-by-side maintenance
      • Precision-cut EVA foam keeps tools secure and visible
      • Expanded drawer capacity for future tool additions
      • Backed by our hassle-free lifetime warranty

      $1,545.00

        %3Ch5%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/h5%3E
          SHIPPING METHOD: GROUND

        This product ships via UPS or USPS. UPS/USPS eligible orders over $750 qualify for Free Shipping.

        FREE pickup is also available at our Irvine, CA location. Learn More

          LIFETIME WARRANTY

        BoxoUSA offers a hassle-free lifetime warranty on all products. Learn More

        DETAILS

        Purpose-built for UTV owners, off-road racers, and field service technicians, the BoxoUSA 190-piece UTV Tool Box delivers a complete, mobile repair solution in one rugged system. This 5-drawer hand carry toolbox is fully equipped with a comprehensive mix of metric and SAE hand tools, plus specialized UTV service tools designed to handle real-world maintenance and trail-side repairs.

        Inside, you’ll find a full assortment of professional-grade sockets, ratchets, wrenches, hex keys, and screwdrivers essential for the most common fasteners across UTV platforms. Dedicated service tools expand capability with impact sockets for wheel and suspension work, Torx solutions for body panels and components, and specialty tools like a swivel breaker bar, pry bar, locking pliers, and circlip pliers to tackle deeper mechanical tasks.

        Built from heavy-duty steel with smooth ball-bearing drawers, this portable toolbox is designed for durability and efficiency wherever repairs are needed. Each drawer is organized with CNC-cut EVA foam for maximum tool control, and labeled for quick identification and accountability, so you always know what’s in your box before and after the job.

        Read more

        KEY FEATURES

        • Complete UTV service coverage — essential metric and SAE hand tools combined with UTV-specific service tools handle maintenance, repair, and upgrades across suspension, drivetrain, wheel hubs, and body panels
        • UTV-specific socket range (17–32mm) — metric impact sockets cover the most common wheel, hub, and aftermarket upgrade fasteners; plastic-coated 17mm and 19mm wheel sockets prevent cosmetic damage during removal and installation
        • Specialty service tools built in — swivel breaker bar, extendable pry bar, Torx keys and sockets, circlip pliers, ball pein hammer, and panel removal tool extend capability for deeper mechanical and trailside tasks
        • Chrome vanadium steel construction — professional-grade tools finished with a corrosion-resistant coating deliver long-term durability in harsh outdoor, pit, and shop environments
        • Versatile access and torque control — T-handle ratchet with ¼" hex drive and extensions, plus 90-tooth ratchets in ¼" and 3/8" drive, provide precision reach and control in confined UTV spaces
        • CNC-cut 2-tone EVA foam inserts across all 5 drawers — precision-fit foam ensures immediate detection of missing tools, chemical resistance, and a secure organized layout purpose-built for this kit
        • Heavy-duty 20-gauge steel box with ball-bearing drawers — portable hand carry design built for reliable, repeated use in the field, pit, or garage

        WHAT’S INCLUDED

        Essential Metric & SAE Tools:

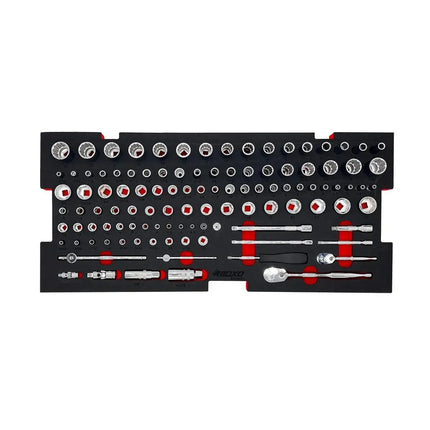

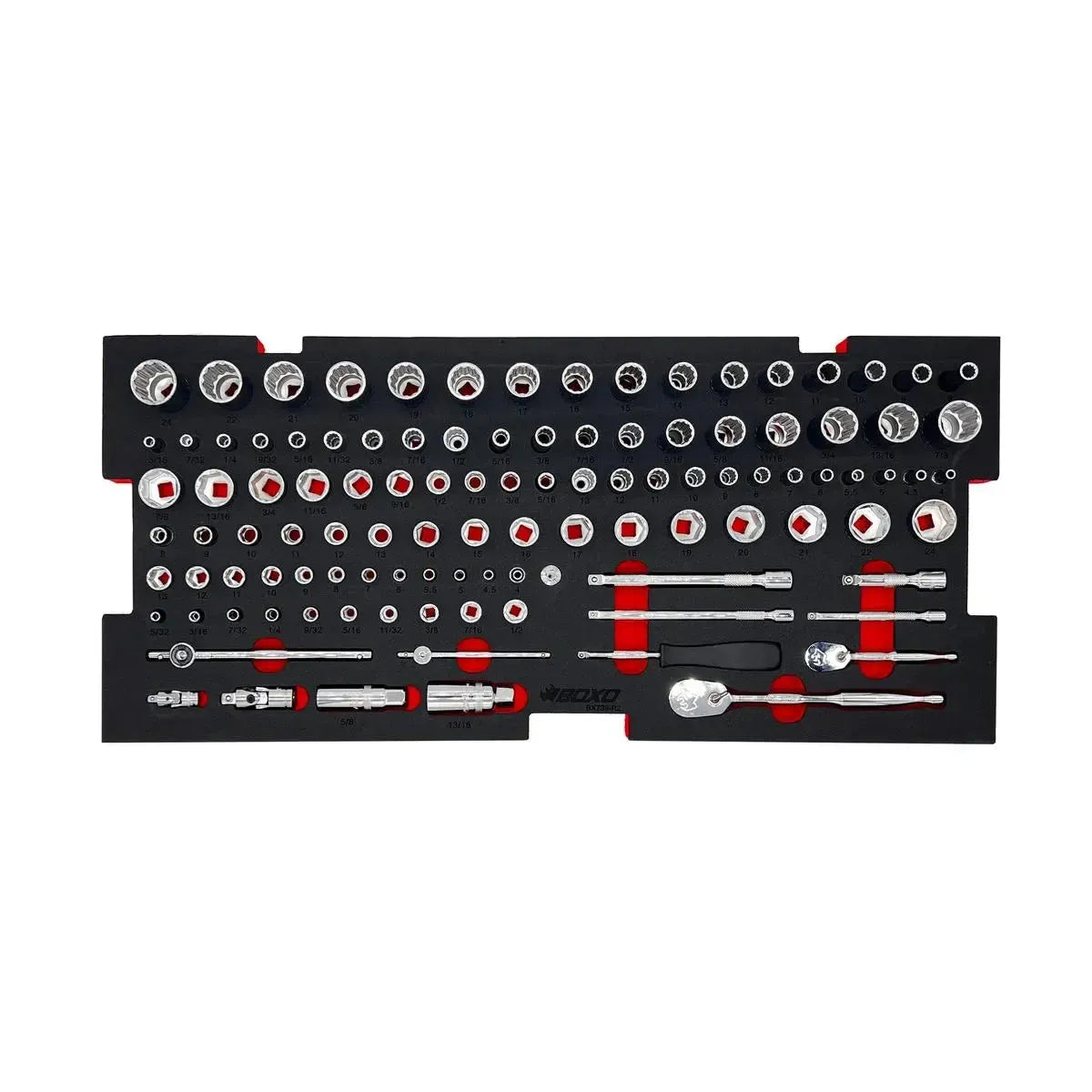

        • 12-Piece ¼" drive metric 6-point sockets: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13mm
        • 12-Piece ¼" drive metric 12-point deep sockets: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13mm
        • 10-Piece ¼" drive SAE 6-point sockets: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
        • 9-Piece ¼" drive SAE 12-point deep sockets: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
        • ¼" Drive 90-tooth ratchet handle without quick release
        • ¼" Drive spinner handle
        • ¼" Drive sliding T-handle (115mm)
        • ¼" Drive universal joint
        • 2-Piece ¼" drive extension bars: 4" (100mm), 6" (150mm)
        • 16-Piece 3/8" drive metric 6-point sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24mm
        • 16-Piece 3/8" drive metric 12-point deep sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24mm
        • 10-Piece 3/8" drive SAE 6-point sockets: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
        • 10-Piece 3/8" drive SAE 12-point deep sockets: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
        • 3/8" Drive 90-tooth ratchet handle without quick release
        • 2-Piece 3/8" drive extension bars: 3" (75mm), 6" (150mm)
        • 3/8" Drive sliding T-handle (165mm)
        • 3/8" Drive universal joint
        • 2-Piece 3/8" drive spark plug sockets: 5/8, 13/16"
        • 3/8" Drive 3/8" to ¼" adapter
        • 4-Piece slotted screwdriver set: 4x100, 6x100, 8x150, 6x38mm
        • 4-Piece Phillips screwdriver set: PH1x100, PH2x100, PH3x150, PH2x38mm

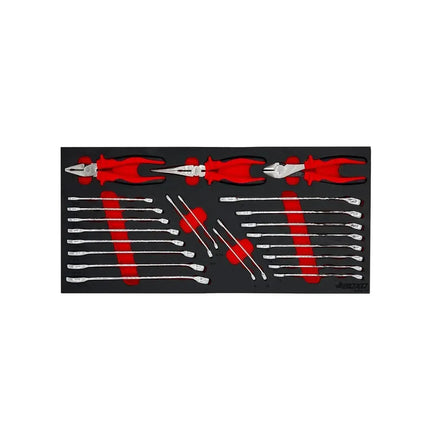

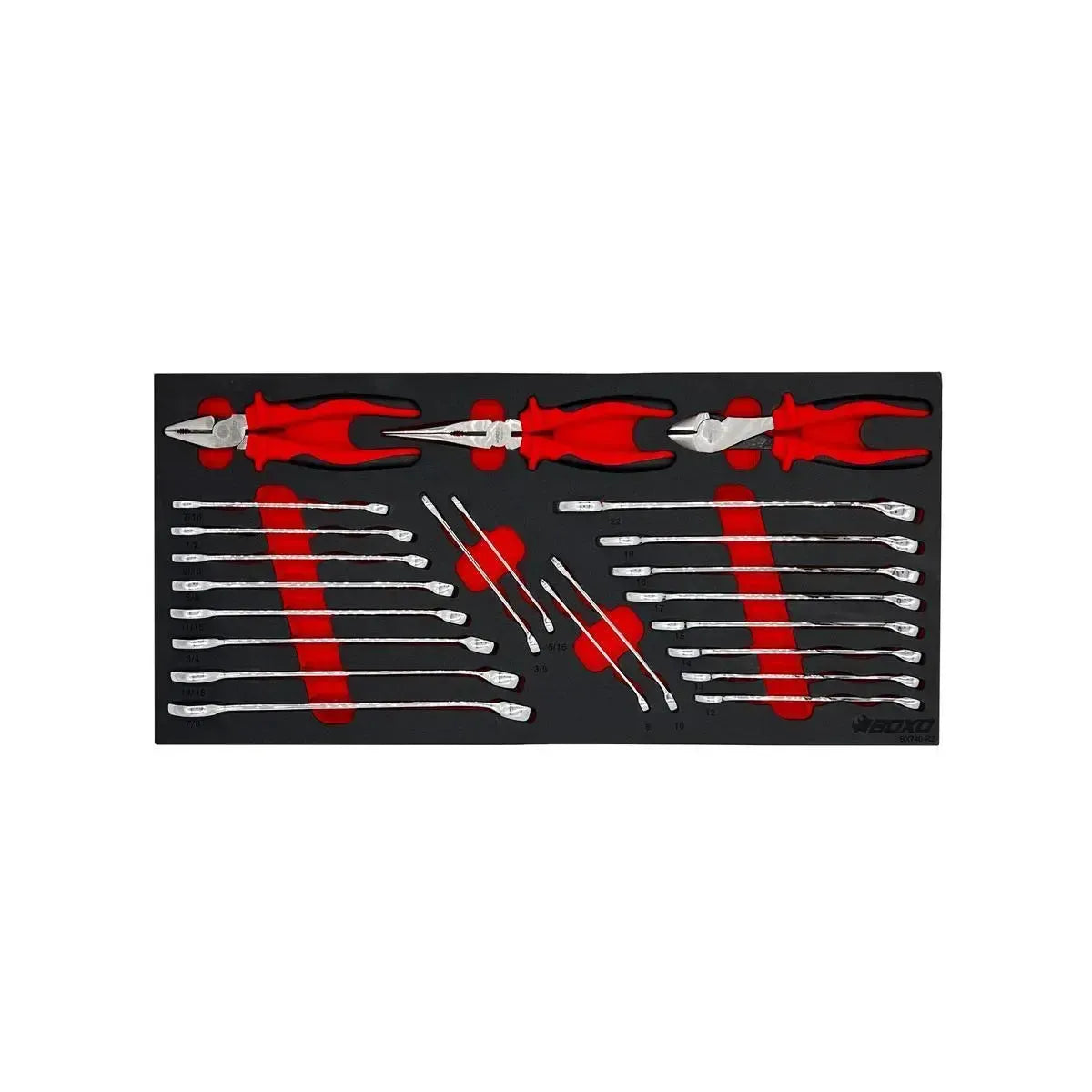

        • 10-Piece metric combination wrenches: 8, 10, 12, 13, 14, 15, 17, 18, 19, 22mm
        • 10-Piece SAE combination wrenches: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8"
        • 7" Combination pliers
        • 8" Long nose pliers
        • 7" Heavy-duty diagonal side cutter pliers
        • 10" Groove joint water pump pliers
        • 9-Piece long arm ball point metric hex key set
        • 9-Piece long arm SAE hex key set

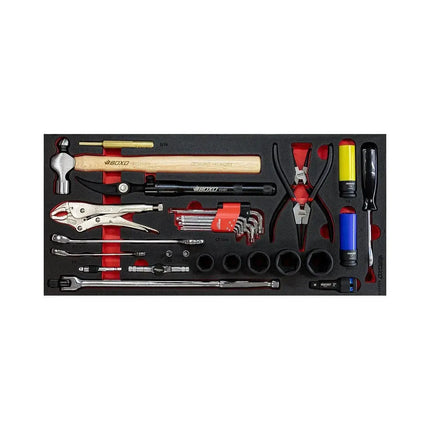

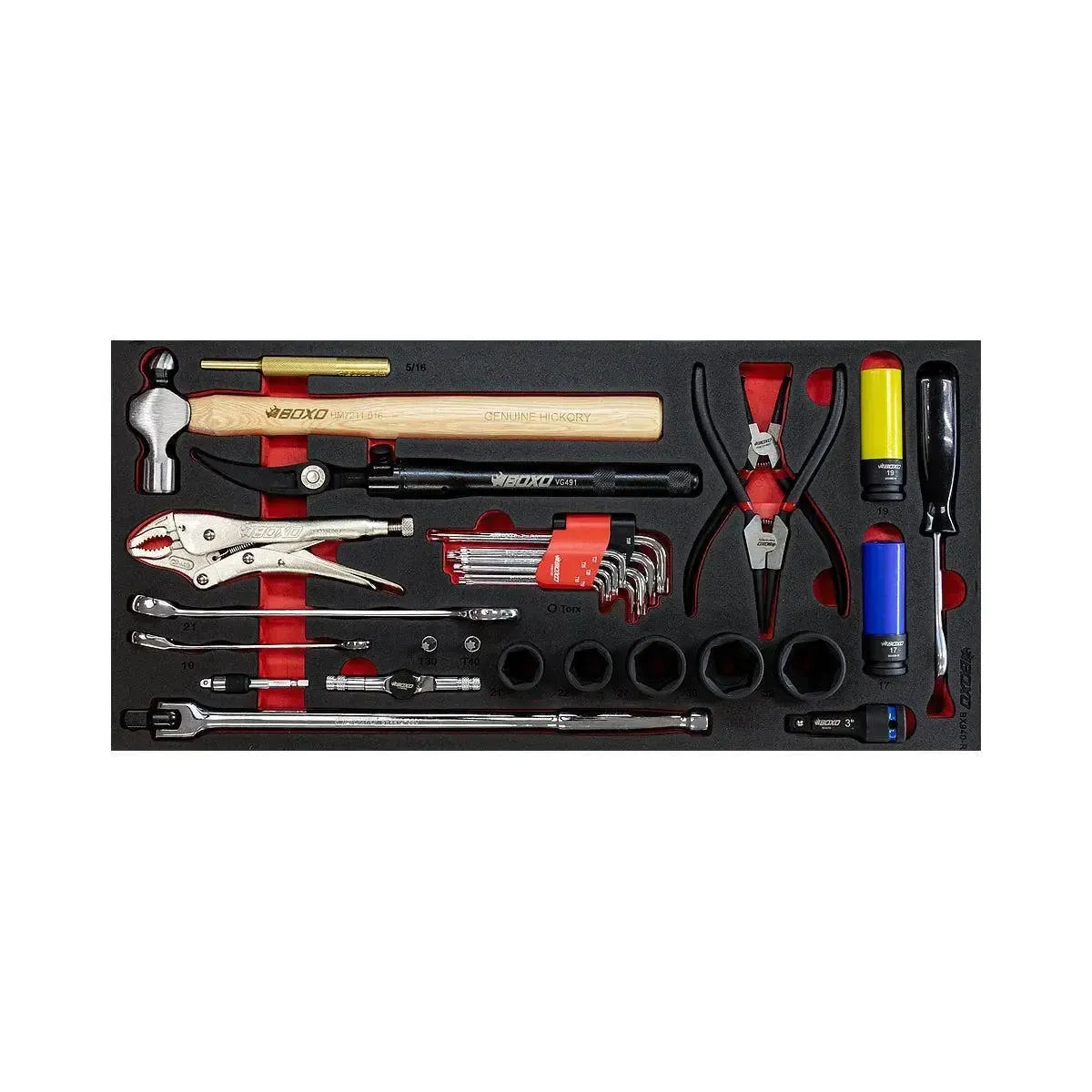

        UTV Specialty Tools:
        • ½" Drive swivel breaker bar, 14-15/16" long
        • 9-Piece Torx key Set
        • ¼" Drive Torx bit sockets: T30, T40
        • ½" Drive 6-point impact wheel sockets with protective plastic coating: 17mm, 19mm
        • ½" Drive 6-point impact sockets: 21, 22, 27, 30, 32mm
        • Panel removal tool
        • ¼" Drive T-handle ratchet hex drive wrench
        • ¼" Extension for T-handle
        • ½" Extension, 3" long
        • 10mm Combination ratcheting wrench
        • 21mm Combination wrench
        • 7" Curved jaw locking pliers
        • Extendable pry bar
        • ½" Impact 3" extension
        • 5/16" Punch
        • 13" Ball pein hammer
        • 7" Straight circlip pliers
        • 7" Angled circlip pliers

        SPECIFICATIONS

        • Piece count: 190
        • Storage layout: 5-drawer hand carry toolbox with CNC-cut EVA foam inserts
        • Tool type: Metric and SAE hand tools; UTV specialty service tools
        • Measurement type: Metric and SAE
        • Size range: 4–24mm (metric sockets); 3/16–7/8" (SAE sockets); 17–32mm (impact sockets)
        • Drive type: ¼", 3/8", ½"
        • Configuration: 6-point and 12-point standard; 6-point deep; 6-point impact
        • Material: Chrome vanadium steel (tools); 20-gauge steel (box)
        • Finish: Corrosion-resistant
        • Mechanism: 90-tooth ratchet (¼" and 3/8" drive)
        • Foam type: CNC-cut 2-tone EVA foam
        • Chemical resistance: Resistant to shop chemicals and fluids
        • Storage features: Labeled drawers for tool identification and accountability
        • Intended use: UTV maintenance and repair, trailside emergency service, off-road racing pit support, powersports shop and field service
        • Weight: 106 lbs
        • Warranty: Hassle-Free Lifetime Warranty

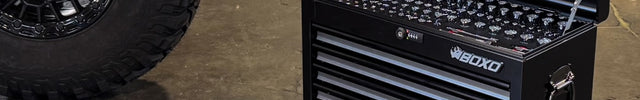

        UTV-BOX_258pcs_BK-5-drawer06_54a7bd3f-2080-4878-8d64-b5f5911ba420

        BUILT FOR REAL UTV MAINTENANCE - AND MORE

        Don't let a breakdown ruin your ride. Engineered specifically for Side-by-Side (SxS) owners, off-road racers, and field service techs, this comprehensive toolkit bridges the gap between deep garage maintenance and vital trail-side repairs. Whether you are upgrading your suspension or fixing a broken axle in the dirt, you'll have the right tools to keep your UTV running hard.
        • Includes specialized UTV service tools like protective impact wheel sockets, Torx keys, and a heavy-duty swivel breaker bar.
        • Precision-cut EVA foam keeps your metric and SAE hand tools securely locked in place over rough off-road terrain.
        • Rugged 20-gauge steel 5-drawer construction designed to withstand harsh pit, shop, and chase truck environments.

        MADE TO PERFORM. PROVEN TO LAST.

        Designed for off-roaders and field service technicians who demand professional-grade tools, whether in the home garage, out at the dunes, or in the pit. Built from heavy-duty 20-gauge steel, the UTV Box delivers the durability, organization, and high-torque performance you can rely on season after season.

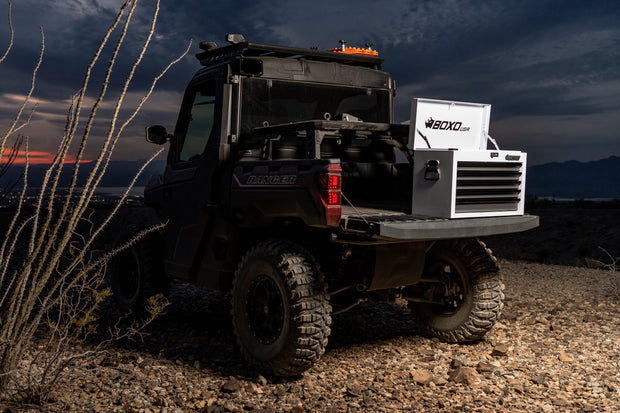

        • Copy_of_2022-12-BOXO5drawerEmptyLGV-30_1

          BUILT FOR YEARS OF HARD USE

          Proven in chase trucks, race trailers, and powersports garages. BoxoUSA hand-carry tool boxes don’t fail when the off-road conditions get rough.

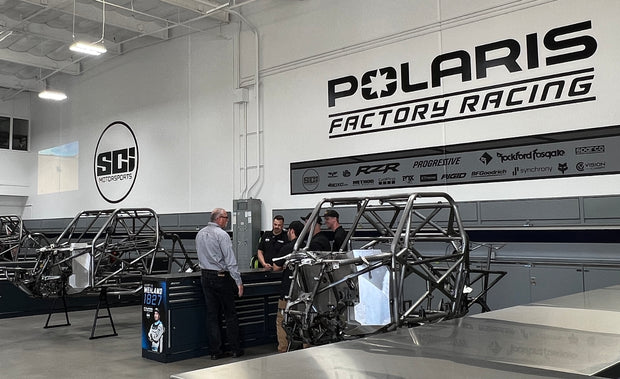

        • Polaris_Factory_Racing_BoxoUSA_Bays_Wide

          TRUSTED BY OFF-ROAD RACE TEAMS

          Trusted by professional outfits like Polaris Factory Racing, the UTV Box delivers the organization, access, and reliability demanded in harsh outdoor environments.

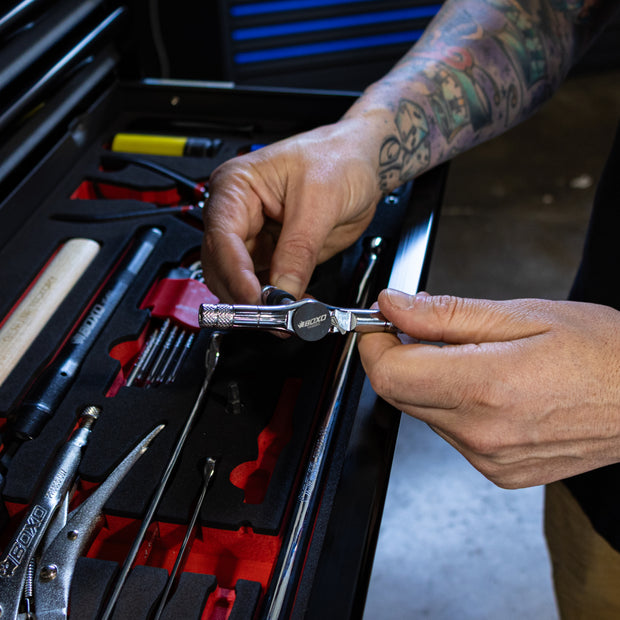

        • UTV-BOX_258pcs_BK-5-drawer04

          EVERY TOOL HAS A PURPOSE - AND A PLACE

          CNC-cut, 2-tone EVA foam inserts keep your metric, SAE, and UTV specialty tools secure and instantly accessible—no rattling, no wasted time on the trail.

        EVERYTHING YOU NEED, NOTHING YOU DON'T.

        • HASSLE-FREE LIFETIME WARRANTY

          Every UTV Box is backed for life. If something fails under normal use, BoxoUSA makes it right. No fine print. No runaround.

        • TRACK READY DELIVERY

          Every UTV Box ships with tools already organized in precision-cut EVA foam, so setup is fast and straightforward. No sorting, no guesswork—just drop it in place and get to work.

        • BUILT FOR THE TRAIL, PROVEN IN THE DIRT

          This isn’t a generic toolbox. The UTV Box was designed around real Side-by-Side maintenance, and it shows every time you open a drawer.
