17-Piece Punch & Chisel Set | 1/3 Drawer EVA Foam

    DETAILS

    The 17-piece punch and chisel set provides the core tools needed for pin driving, material marking, controlled cutting, and general striking work. It combines steel punches and chisels with brass punches for non-marring use on sensitive components.

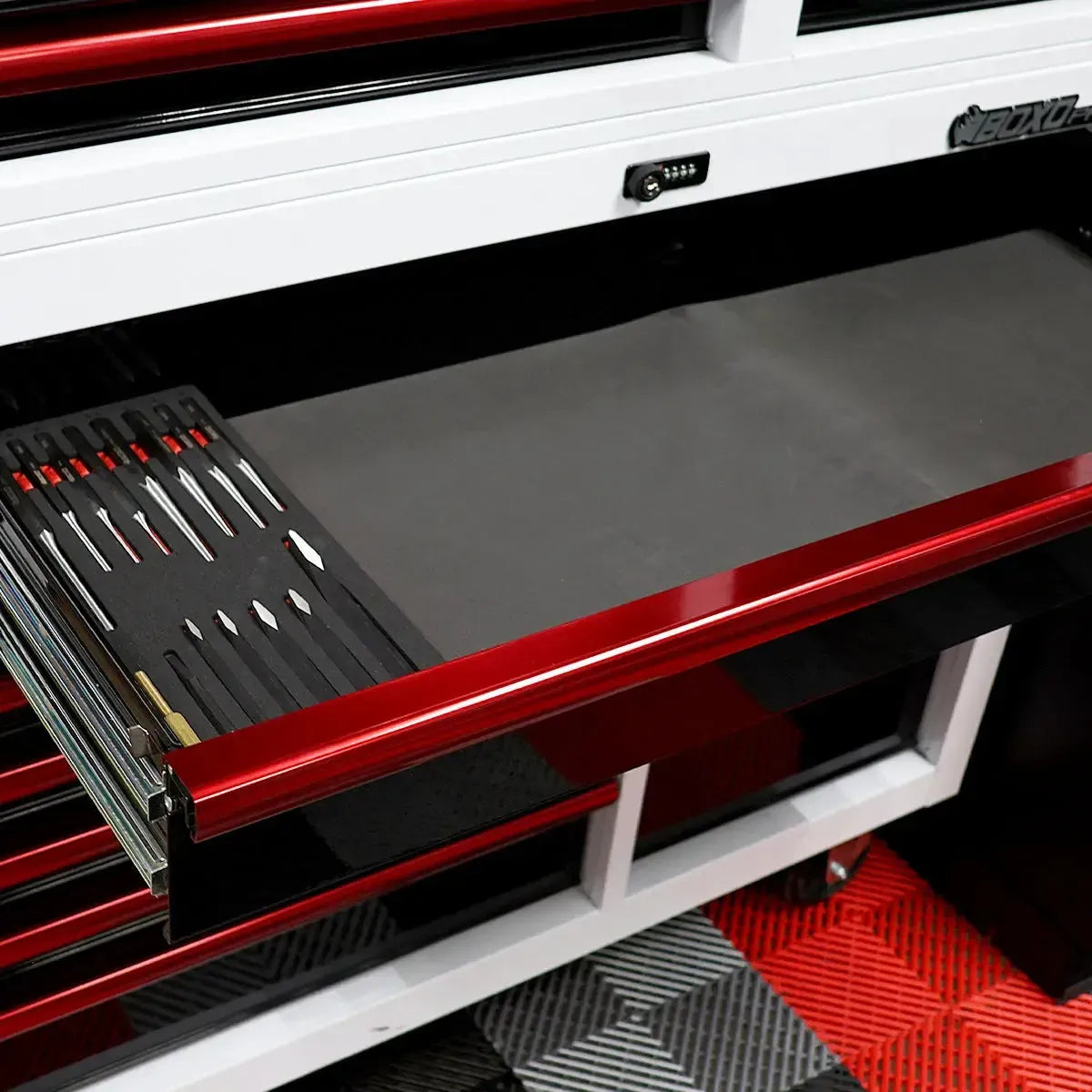

    Each tool is organized in a CNC-cut 1/3 drawer EVA foam insert for fast access, clear tool placement, and long-term accountability in BoxoUSA drawer systems.

    17-Piece Punch & Chisel Set | 1/3 Drawer EVA Foam

      Product form

      SKU: BX916-R

      $150.00

        %3Ch5%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/h5%3E
          SHIPPING METHOD: GROUND

        This product ships via UPS or USPS. UPS/USPS eligible orders over $750 qualify for Free Shipping.

        FREE pickup is also available at our Irvine, CA location. Learn More

          LIFETIME WARRANTY

        BoxoUSA offers a hassle-free lifetime warranty on all products. Learn More

        DETAILS

        The 17-piece punch and chisel set provides the core tools needed for pin driving, material marking, controlled cutting, and general striking work. It combines steel punches and chisels with brass punches for non-marring use on sensitive components.

        Each tool is organized in a CNC-cut 1/3 drawer EVA foam insert for fast access, clear tool placement, and long-term accountability in BoxoUSA drawer systems.

        KEY FEATURES

        * Pin punches, taper punches, cold chisels, and cape chisel cover common driving, cutting, shaping, and removal work in automotive, industrial, and maintenance applications
        * 1/4” and 5/16” brass punches provide a softer striking option to help prevent marring on sensitive parts and finished surfaces
        * Precision-ground tips and cutting edges support controlled contact, clean material engagement, and long service life
        * Tapered striking ends help center hammer blows for improved control during repeated striking work
        * Spring-loaded auto center punch allows accurate one-handed marking without a hammer
        * Black phosphate finish on steel punches and chisels improves corrosion resistance in shop environments
        * CNC-cut 2-tone EVA foam provides precise tool fit, quick missing-tool visibility, chemical resistance, and organized drawer storage

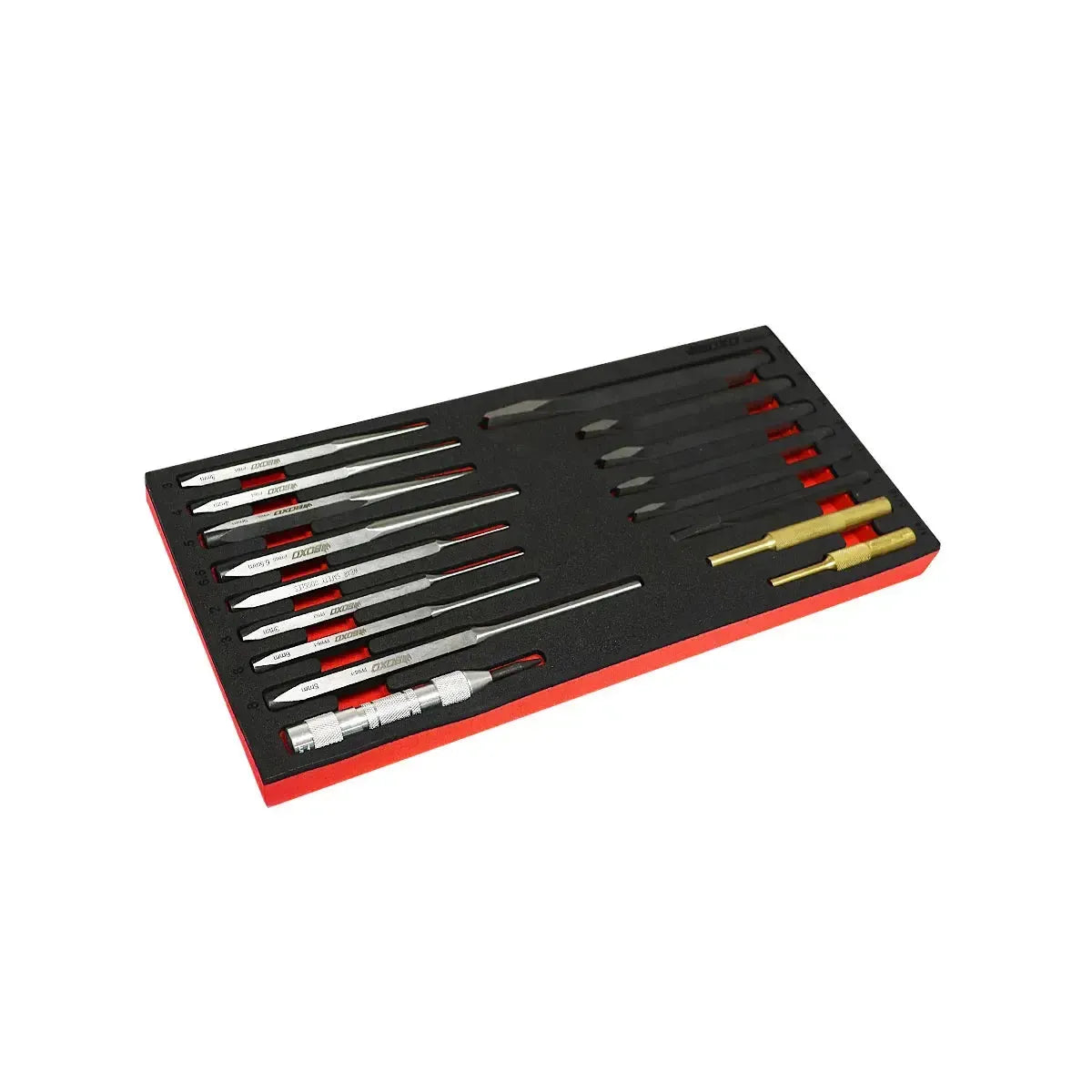

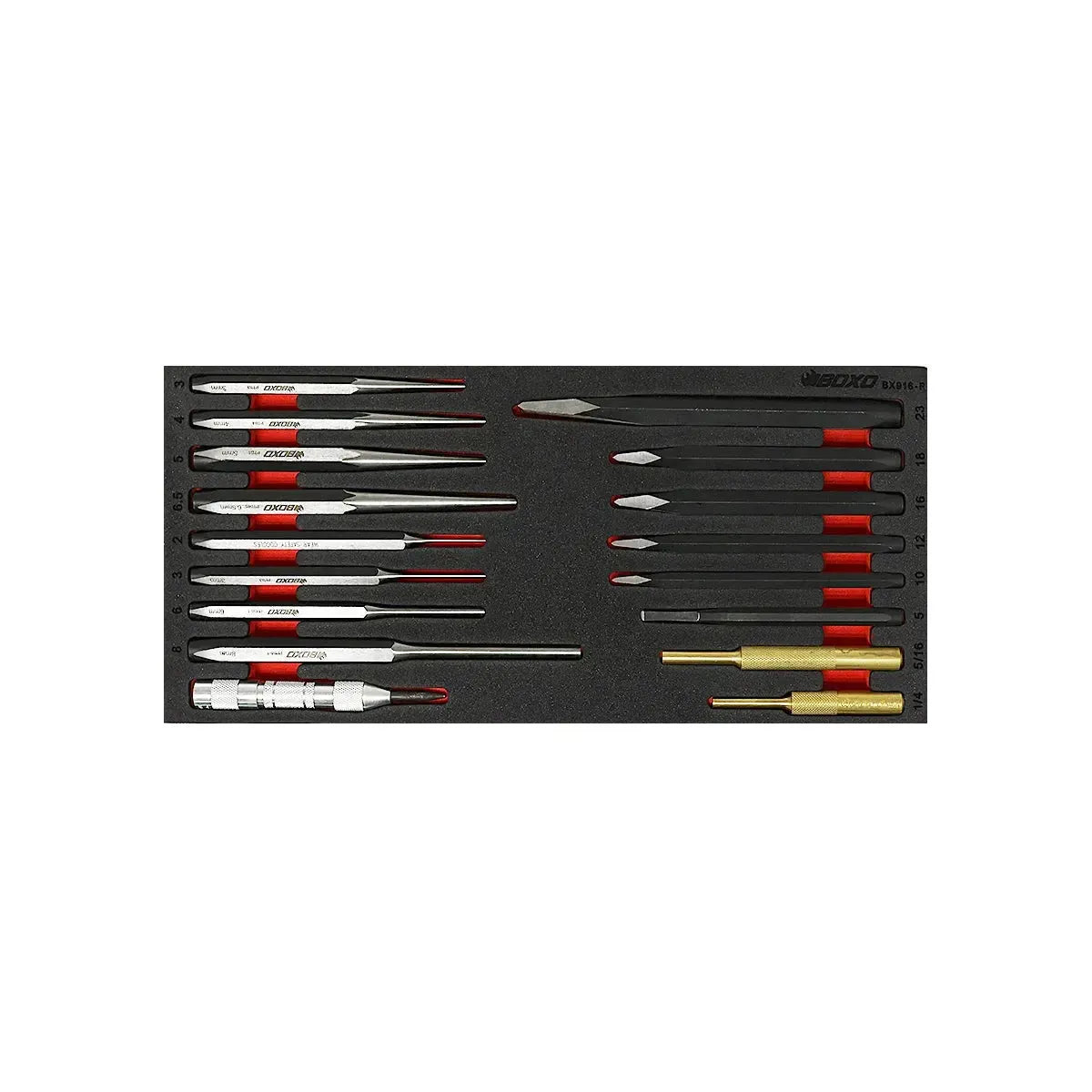

        WHAT’S INCLUDED

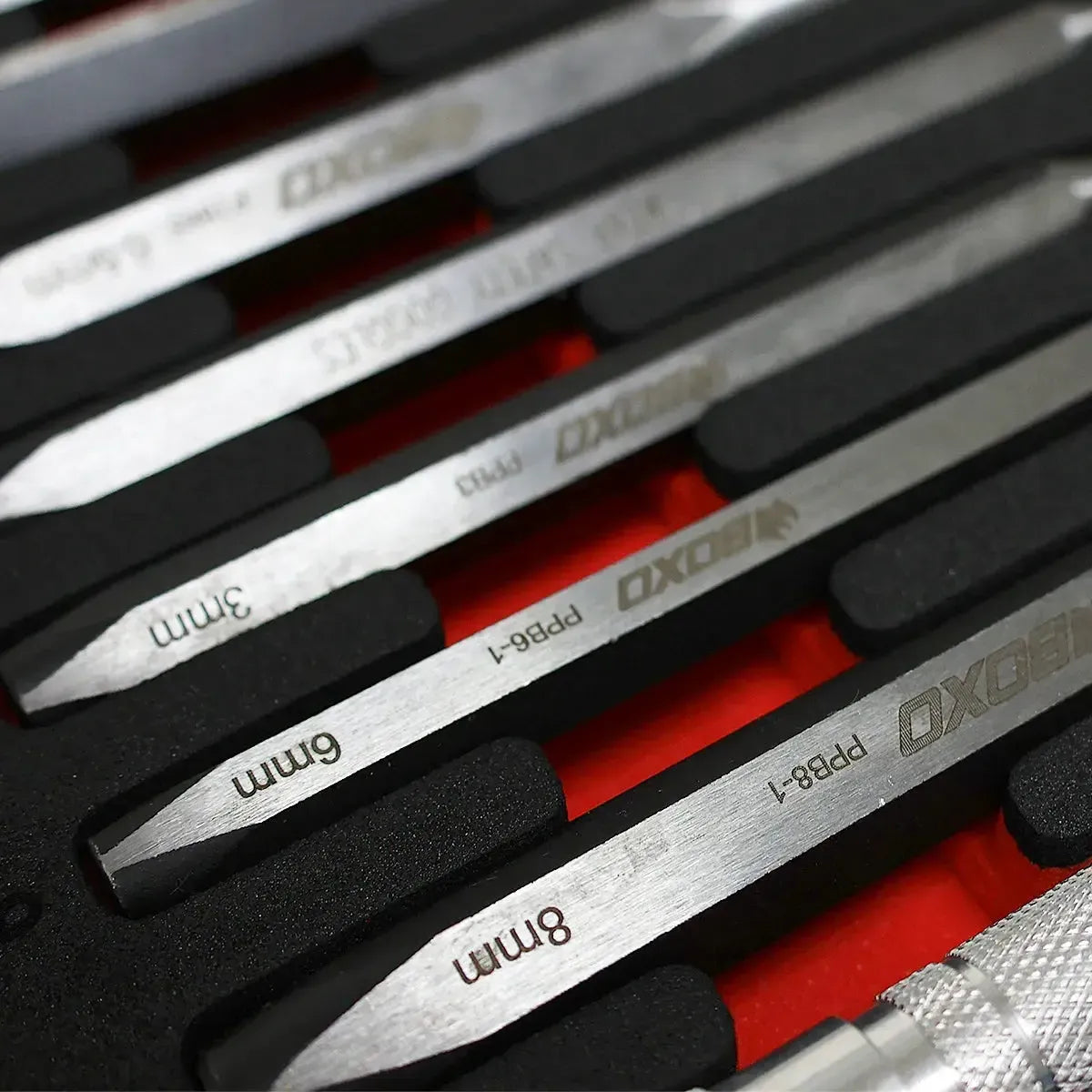

        • Pin Punches: #2, #3, #6 x 6” (150 mm), #8 x 7.75” (200 mm)
        • Taper Punches: #3 x 5.50” (140 mm), #4 x 6” (150 mm), #5 x 6” (150 mm), #8 x 6.50” (165 mm)
        • Cold Chisels: #10, #12, #16, #18 x 6” (150 mm), #23 x 7.75” (200 mm)
        • Cape Chisel: #5 x 5.30” (135 mm)

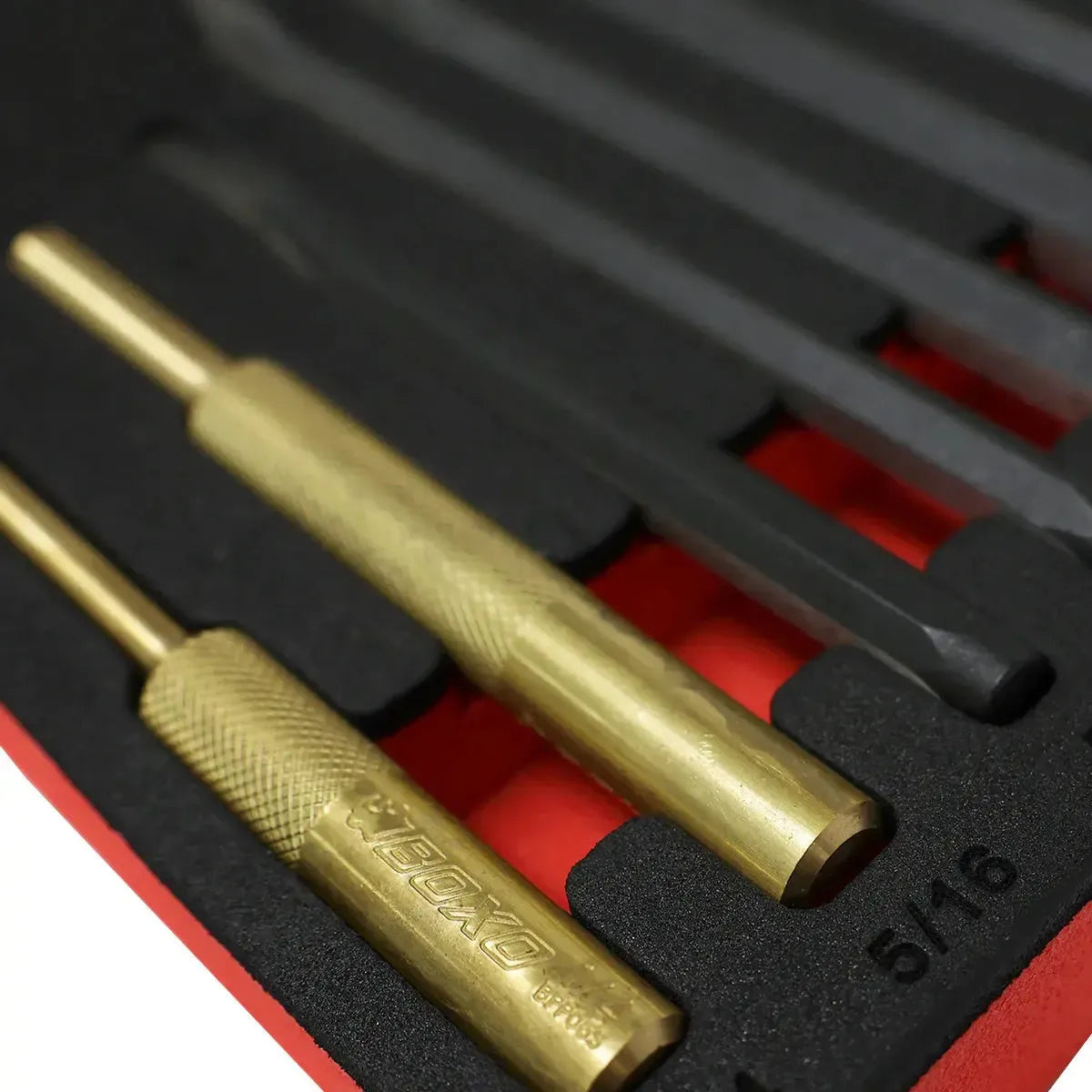

        • Brass Punches: 1/4” and 5/16”, knurled handles, chamfered heads
        • Auto Center Punch: Spring-loaded with knurled handle

        SPECIFICATIONS

        • Piece count: 17
        • Storage layout: Single 1/3 drawer EVA foam insert
        • Drawer compatibility: (1) 1/3 drawer insert – 26” BoxoUSA system
        • Foam dimensions: 7-3/8” x 15-11/16” x 1-1/4"
        • Weight: 4.5 lbs
        • Tool type: Punch and chisel set
        • Size range: Pin punches #2 to #8; taper punches #3 to #8; cold chisels #10 to #23; brass punches 1/4” and 5/16”
        • Length range: 5.30” to 7.75”
        • Configuration: Pin punches, taper punches, cold chisels, cape chisel, brass punches, auto center punch
        • Material: Steel and brass
        • Finish: Black phosphate finish on steel punches and chisels
        • Mechanism: Spring-loaded auto center punch
        • Handle type: Knurled handles on brass punches and auto center punch
        • Markings: Laser-etched foam markings
        • Foam type: CNC-cut 2-tone EVA foam
        • Chemical resistance: Resistant to shop chemicals and fluids
        • Storage features: Two-tone missing tool visibility and individual tool pockets
        • Storage orientation: Drawer storage
        • Intended use: Driving pins, marking materials, non-marring striking, and controlled cutting work
        • Warranty: Hassle-Free Lifetime Warranty

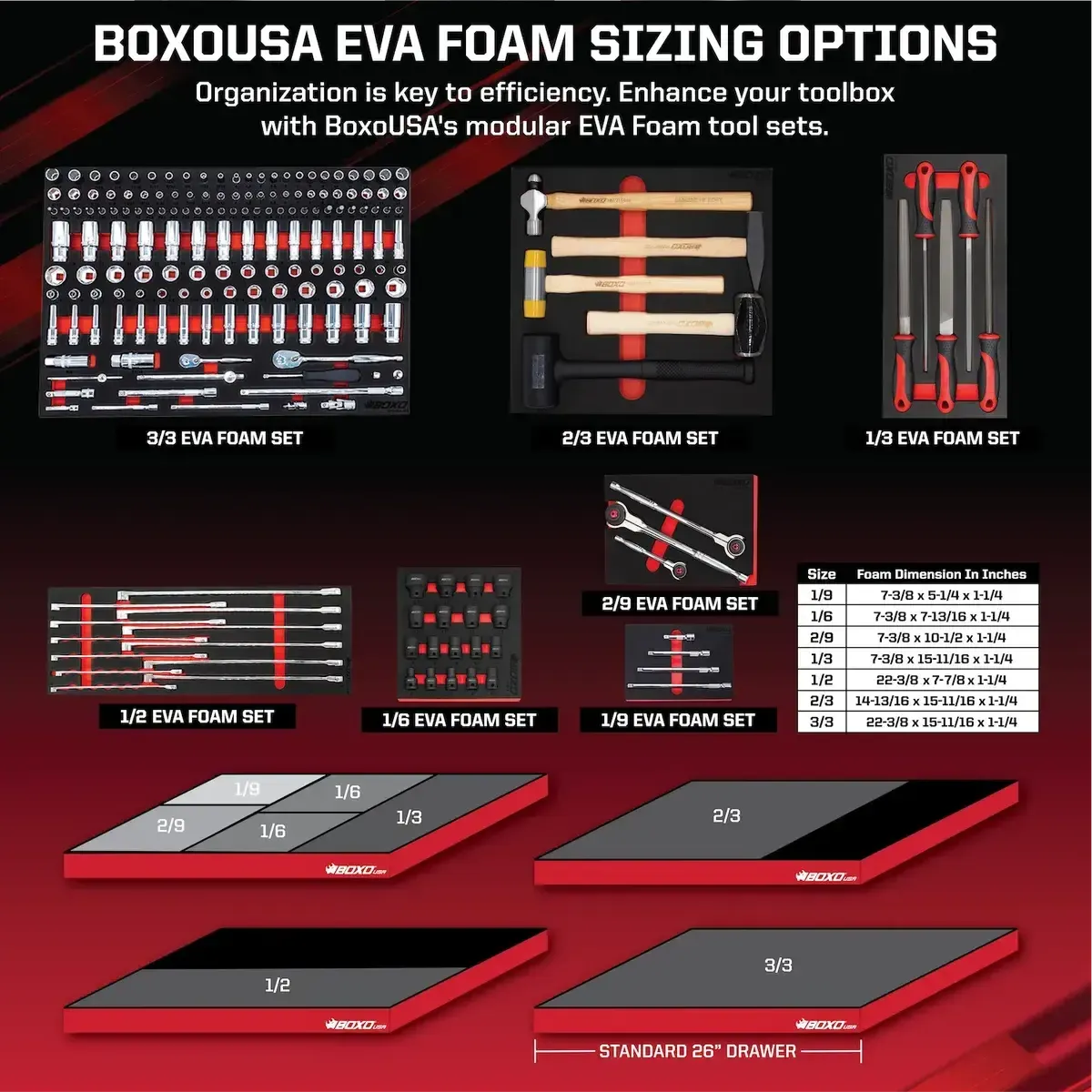

        boxo_eva_foam_sizing_options

        BoxoUSA EVA foam inserts are designed around standardized drawer platforms, starting with the 26” system, allowing you to build a fully modular and customizable tool layout. Each insert size works together, giving you the flexibility to organize tools based on your workflow, service type, or job requirements.

        Whether you’re running full 3/3 drawer coverage or combining sizes like 1/3, 1/6, and 2/9, the system adapts to your setup. This modular approach reduces time spent searching for tools, maintains consistent organization, and supports faster, more repeatable work.

        Standard 26” Drawer Size:
        22-3/8” x 15-11/16” x 1-1/4”

        EVA Foam Insert Sizes:
        • 3/3 (Full Drawer) – 22-3/8” x 15-11/16” x 1-1/4”
        • 2/3 – 14-13/16” x 15-11/16” x 1-1/4”
        • 1/2 – 22-3/8” x 7-7/8” x 1-1/4”
        • 1/3 – 7-3/8” x 15-11/16” x 1-1/4”
        • 2/9 – 7-3/8” x 10-1/2” x 1-1/4”
        • 1/6 – 7-3/8” x 7-13/16” x 1-1/4”
        • 1/9 – 7-3/8” x 5-1/4” x 1-1/4”

        • MODULAR TOOL ORGANIZATION

          Configure your drawer to match your workflow. Mix and match EVA foam inserts to create a layout that keeps tools organized, accessible, and ready for the job.

        • Boxo_Catalog_202268

          QUICK IDENTIFICATION & CUSTOM FIT

          CNC-cut foam with laser-etched markings ensures every tool has a precise fit and designated location. High-contrast layout makes it easy to spot missing tools at a glance.

        • Lifetime_Warranty2_1

          HASSLE-FREE LIFETIME WARRANTY

          Every BoxoUSA EVA foam tool set is backed by a hassle-free lifetime warranty, giving you confidence your tools are protected and built to last.
