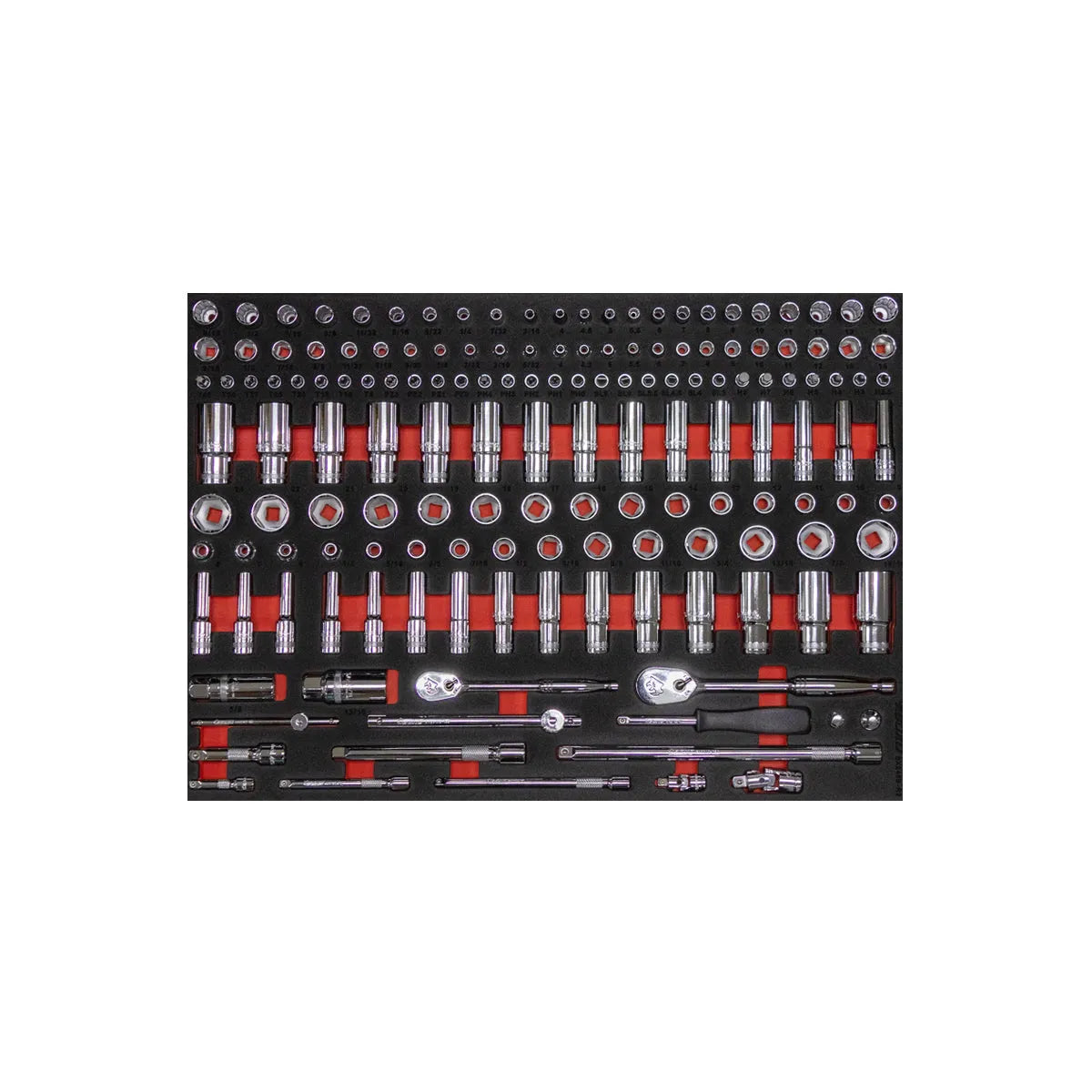

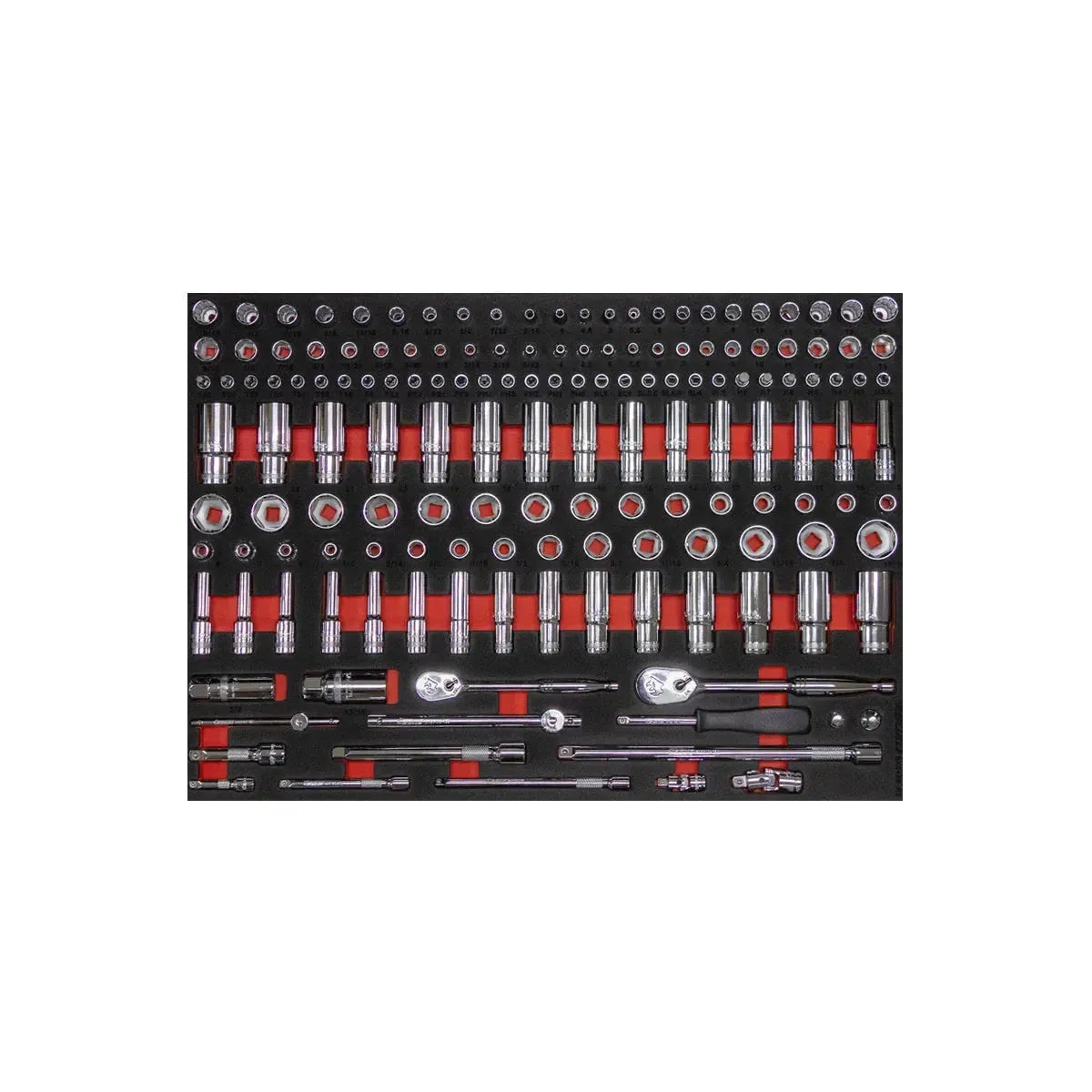

154-Piece 1/4" & 3/8" Drive Metric & SAE Socket Set | 3/3 Drawer EVA Foam

Product form

SKU: BX246B-R2

$460.00

%3Ch5%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/h5%3E

SHIPPING METHOD: GROUND

This product ships via UPS or USPS. UPS/USPS eligible orders over $750 qualify for Free Shipping.

FREE pickup is also available at our Irvine, CA location. Learn More

LIFETIME WARRANTY

BoxoUSA offers a hassle-free lifetime warranty on all products. Learn More

KEY FEATURES

• Comprehensive assortment of ¼" and ⅜" drive sockets, bit sockets, ratchets, extensions, and accessories covers automotive, industrial, and maintenance applications
• Shallow and deep sockets in both metric and SAE sizes provide access for recessed, exposed, and hard-to-reach fasteners
• Comprehensive bit selection includes Hex, Torx, Phillips, Slotted, and Pozi bit sockets for servicing today's equipment and vehicles
• 90-tooth ratchets use a fine-tooth mechanism for small arc swing in tight working spaces
• Premium chrome vanadium alloy steel construction with a mirror chrome finish resists corrosion and withstands daily professional use
• CNC-cut, two-tone EVA foam provides precision tool fitment and instant visual accountability, with laser-etched size markings and resistance to shop chemicals and fluids

WHAT’S INCLUDED

• 13-Piece ¼" drive 6-point Metric standard sockets: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm
• 13-Piece ¼" drive 12-point Metric deep sockets: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm
• 11-Piece ¼" drive 6-point SAE standard sockets: 5/32", 3/16", 7/32", ¼", 9/32", 5/16", 11/32", 3/8", 7/16", ½", 9/16"
• 10-Piece ¼" drive 12-point SAE deep sockets: 3/16", 7/32", ¼", 9/32", 5/16", 11/32", 3/8", 7/16", ½", 9/16"
• 7-Piece ¼" drive Hex bit sockets: 2.5, 3, 4, 5, 6, 7, 8mm
• 7-Piece ¼" drive Slotted bit sockets: 3, 4, 4.5, 5, 5.5, 6, 8mm
• 5-Piece ¼" drive Phillips bit sockets: PH0, PH1, PH2, PH3, PH4
• 4-Piece ¼" drive Pozi bit sockets: PZ0, PZ1, PZ2, PZ3
• 8-Piece ¼" drive Torx bit sockets: T8, T10, T15, T20, T25, T27, T30, T40
• ¼" Drive 90T ratchet wrench
• ¼" Drive spinner handle
• ¼" Drive sliding T-handle (115mm)
• ¼" Drive universal joint
• 3-Piece ¼" drive extension bars: 2" (50mm), 4" (100mm), 6" (150mm)
• ¼" to 3/8" adapter
• 17-Piece 3/8" drive 6-point Metric standard sockets: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
• 17-Piece 3/8" drive 6-point Metric deep sockets: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
• 12-Piece 3/8" drive 6-point SAE standard sockets: ¼", 5/16", 3/8", 7/16", ½", 9/16", 5/8", 11/16", ¾", 13/16", 7/8", 15/16"
• 12-Piece 3/8" drive 6-point SAE deep sockets: ¼", 5/16", 3/8", 7/16", ½", 9/16", 5/8", 11/16", ¾", 13/16", 7/8", 15/16"
• 3/8" Drive 90T ratchet wrench
• 3-Piece 3/8" drive extension bars: 3" (75mm), 6" (150mm), 10" (250mm)
• 3/8" Drive sliding T-handle (165mm)
• 3/8" Drive universal joint
• 2-Piece drive spark plug sockets: 5/8", 13/16"
• 2-Piece adapters: ¼" to 3/8", 3/8" to ¼"

SPECIFICATIONS

• Piece count: 154
• Storage layout: Single 3/3 drawer EVA foam insert
• Drawer compatibility: (1) 3/3 drawer insert – 26" BoxoUSA system
• Foam dimensions: 22-3/8" x 15-11/16" x 1-1/4"
• Tool type: Sockets, bit sockets, ratchets, extensions, adapters, and accessories
• Measurement type: Metric & SAE
• Drive type: ¼" & 3/8"
• Material: Chrome vanadium alloy steel
• Finish: Mirror chrome
• Mechanism: 90-tooth ratchets
• Markings: Easy-to-read size markings on each socket
• Foam type: CNC-cut 2-tone EVA foam
• Chemical resistance: Resistant to shop chemicals and fluids
• Intended use: Automotive, fleet, industrial, equipment maintenance, and professional service applications
• Weight: 28 lbs
• Warranty: Hassle-Free Lifetime Warranty

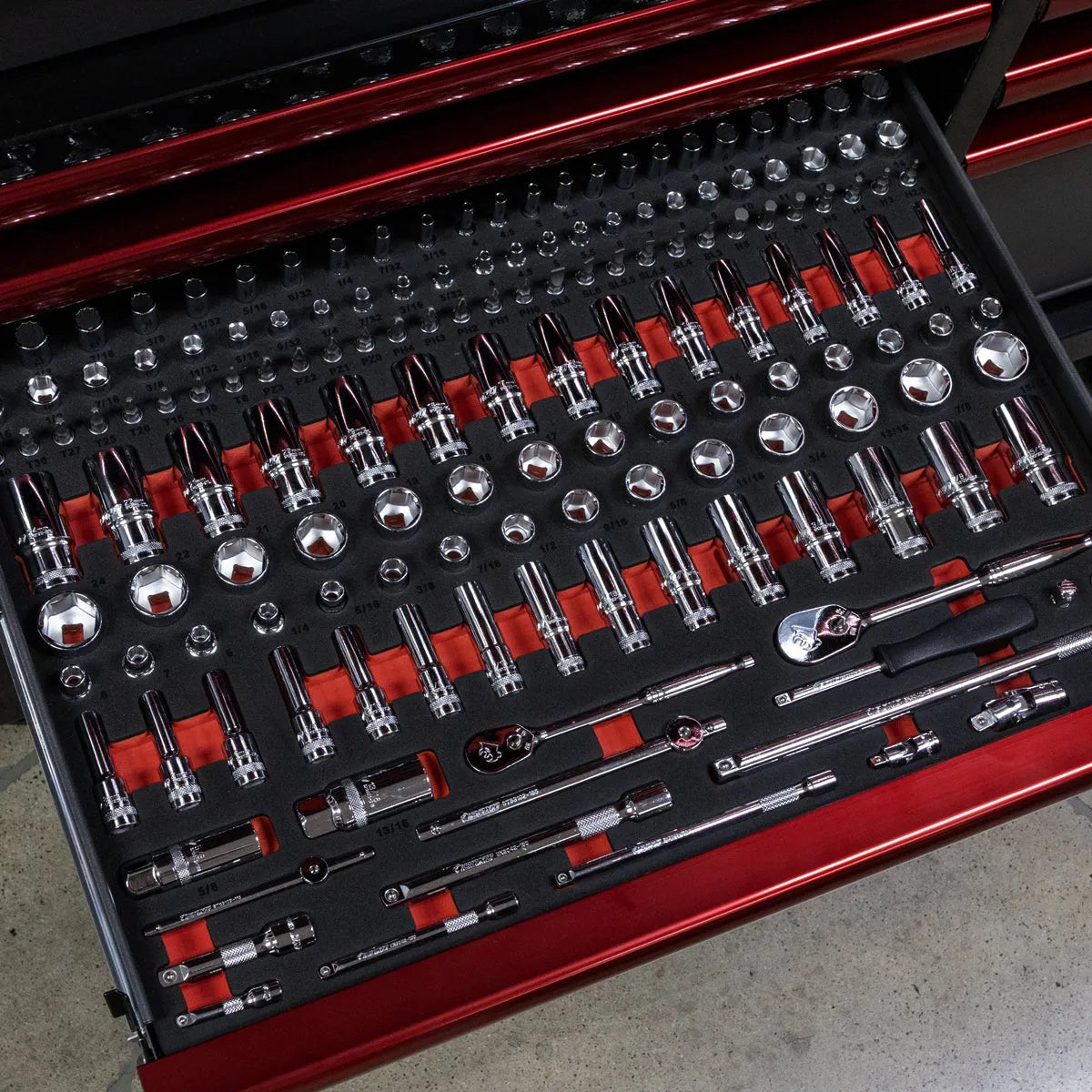

BoxoUSA EVA foam inserts are designed around standardized drawer platforms, starting with the 26” system, allowing you to build a fully modular and customizable tool layout. Each insert size works together, giving you the flexibility to organize tools based on your workflow, service type, or job requirements.

Whether you’re running full 3/3 drawer coverage or combining sizes like 1/3, 1/6, and 2/9, the system adapts to your setup. This modular approach reduces time spent searching for tools, maintains consistent organization, and supports faster, more repeatable work.

Standard 26” Drawer Size:
22-3/8” x 15-11/16” x 1-1/4”

EVA Foam Insert Sizes:
• 3/3 (Full Drawer) – 22-3/8” x 15-11/16” x 1-1/4”
• 2/3 – 14-13/16” x 15-11/16” x 1-1/4”
• 1/2 – 22-3/8” x 7-7/8” x 1-1/4”
• 1/3 – 7-3/8” x 15-11/16” x 1-1/4”
• 2/9 – 7-3/8” x 10-1/2” x 1-1/4”
• 1/6 – 7-3/8” x 7-13/16” x 1-1/4”
• 1/9 – 7-3/8” x 5-1/4” x 1-1/4”

MODULAR TOOL ORGANIZATION
Configure your drawer to match your workflow. Mix and match EVA foam inserts to create a layout that keeps tools organized, accessible, and ready for the job.
QUICK IDENTIFICATION & CUSTOM FIT
CNC-cut foam with laser-etched markings ensures every tool has a precise fit and designated location. High-contrast layout makes it easy to spot missing tools at a glance.
HASSLE-FREE LIFETIME WARRANTY
Every BoxoUSA EVA foam tool set is backed by a hassle-free lifetime warranty, giving you confidence your tools are protected and built to last.
